C013M Straight Guide Pillar, Pressfit

CloseNextPrevious



CloseNextPrevious



CloseNextPrevious



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

CAD Viewer Technical Data

Product Description

C013M Straight Guide Pillar, Pressfit

These top quality  pressfit guide pillars or pins are used in press machinery, for accurate, precise manufacturing and to ensure correct alignment of the top and bottom of the die set.  Long life and hardwearing. Compatible with GSA ball cages.

Specification

Material - Steel 1.7131

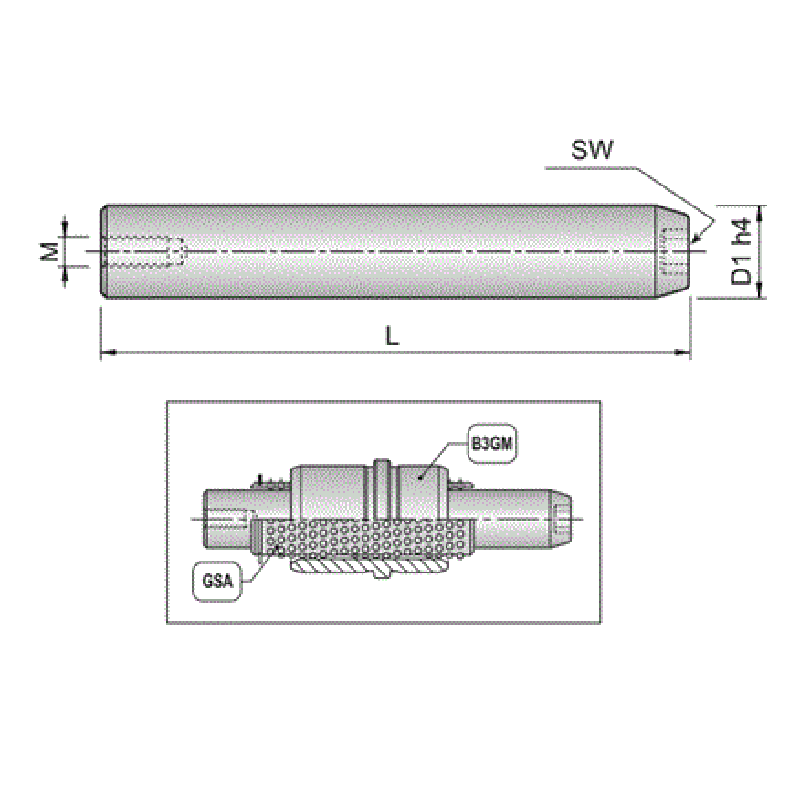

Note: Pictured with ball cage GSA sold separately, or as part of set B12M
