DIN6337 Ball Levers Steel Straight Angled Plain Threaded firm grip workholding applications DIN 6337

Standard Parts for Clamping & Operating & Machine Fixtures > Adjustable Hand Levers, Clamping Levers & Tension Levers > Clamping Levers, Tension Levers
< Previous Product Next Product >

DIN6337 Ball Lever, Steel

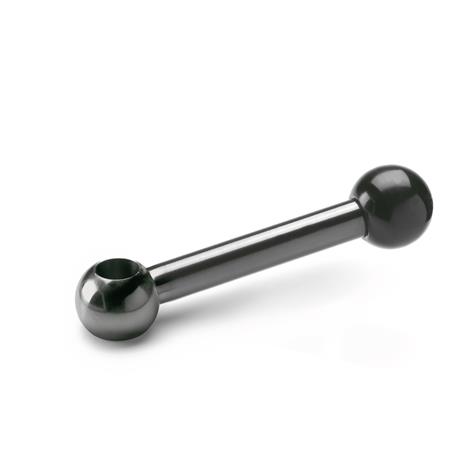

Type K - straight lever with plain bore, Tol. H7 (on request).

Type L - angled lever with plain bore, Tol. H7.

Type M - straight lever with threaded bore (on request).

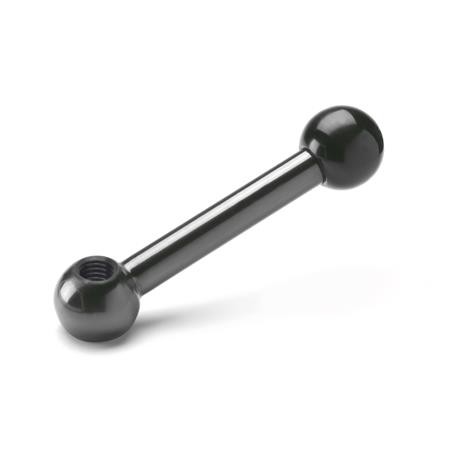

Type N - angled lever with threaded bore

Select Values to Buy:

Tech Spec:



DIN 6337 Ball Lever, Steel.

These ball levers are designed for a comfortable, firm grip, and are ideal for a wide range of workholding applications. They are available with a plain or threaded bore, and with an angled or straight lever.

They have the same ball diameter d1 and length l1 as clamping levers DIN 99.

Specification

Steel - turned, blackened.

Ball knobs DIN 319 - plastic, black.

These ball levers can also be supplied without bore and flats i.e with a solid ball (type A), on request.

Type K and M with straight lever are supplied on request. They are not normally available from stock and require a minimum order quantity.

RoHS compliant



Select / Deselect Visible Columns
PartCodel1d1d2Typebd3d4d5d6hl2MaterialMass

DIN6337-63-M8-N63M8~N121612.52083360ST0.032
DIN6337-63-B8-L63~B8L121612.52083360ST0.032
DIN6337-80-M10-N80M10~N14.520162094076ST0.054
DIN6337-80-B10-L80~B10L14.520162094076ST0.053
DIN6337-100-M12-M100M12~M18.5252025115095ST0.102
DIN6337-100-M12-N100M12~N18.5252025115095ST0.102
DIN6337-100-B12-L100~B12L18.5252025115095ST0.1
DIN6337-125-M16-N125M16~N243225321563119ST0.15
DIN6337-125-B16-L125~B16L243225321563119ST0.216
DIN6337-160-M20-N160M20~N304031401880152ST0.425
DIN6337-160-B20-L160~B20L304031401880152ST0.415
#62138.62~62140.93#
