DIN808 Universal Joints Needle Bearing keyway minimal play long lasting friction DIN 808

Standard Machine Elements > Universal, Ball Joints & Fork Joints > Universal Joints
< Previous Product Next Product >

DIN808 Universal Joint, Needle Bearing

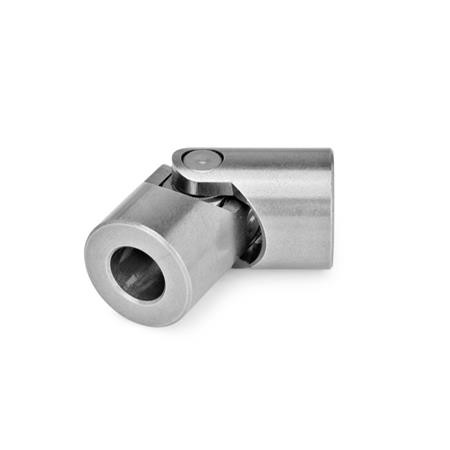

Type EW - single, with needle bearing

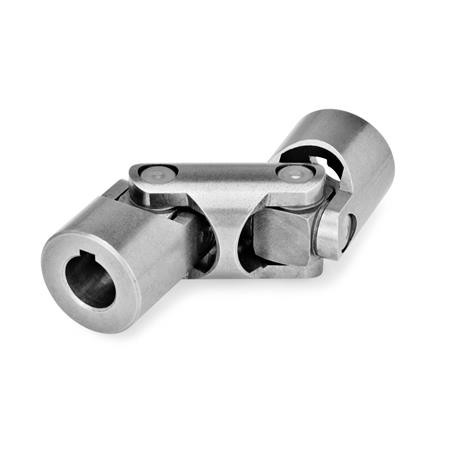

Type DW - double, with needle bearing

Bore code d2:

B - without keyway

K - with keyway

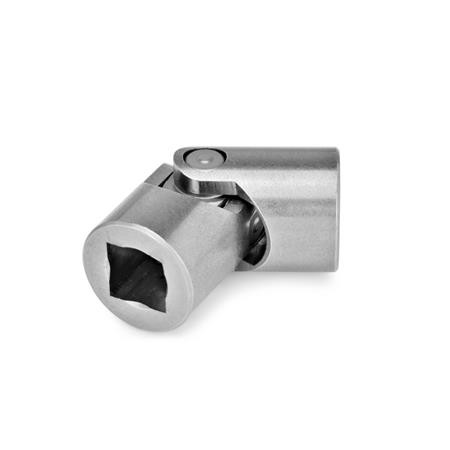

V - with square - available on request - please call for further details.

Select Values to Buy:

Tech Spec:



DIN 808 Universal Joint, Needle Bearing.

These universal joints with needle bearing have a high level of precision. They have minimal play and are long lasting.

The permissible r.p.m. of these joints is higher than for those with friction bearings, but is still dependent on the load, duration of use as well as angular disposition. Ideal applications allow speeds of up to 4000 r.p.m. Needle bearings give the universal joints at 3 to 5 angular disposition a considerably higher degree of efficiency than those fitted with friction bearings. The needle bearings have a permanent lubrication and thus do not require servicing.

Specification

Steel - blank.

Joint bearing areas, pins, bearing sleeves - case hardened.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2l1/l2l3l4tBore CodeTypeMass

DIN808-16-K6-34-EGST1663417228KEG0.039
DIN808-16-K6-56-DGST1665617228KDG0.062
DIN808-16-K8-62-DGST16862202211KDG0.065
DIN808-22-B10-48-EWST221048242612BEW0.095
DIN808-22-K10-48-EWST221048242612KEW0.095
DIN808-22-B10-74-DWST221074242612BDW0.14
DIN808-22-K10-74-DWST221074242612KDW0.141
DIN808-22-B12-62-EWST221262312618BEW0.118
DIN808-22-K12-62-EWST221262312618KEW0.116
DIN808-22-B12-88-DWST221288312618BDW0.017
DIN808-22-K12-88-DWST221288312618KDW0.163
DIN808-25-B12-56-EWST251256283013BEW0.145
DIN808-25-K12-56-EWST251256283013KEW0.142
DIN808-25-B12-86-DWST251286283013BDW0.216
DIN808-25-K12-86-DWST251286283013KDW0.212
DIN808-25-B16-74-EWST251674373021BEW0.165
DIN808-25-K16-74-EWST251674373021KEW0.162
DIN808-25-B16-104-DWST2516104373021BDW0.235
DIN808-25-K16-104-DWST2516104373021KDW0.231
DIN808-28-B14-60-EWST281460303613BEW0.183
DIN808-28-K14-60-EWST281460303613KEW0.18
DIN808-28-B14-96-DWST281496303613BDW0.287
DIN808-28-K14-96-DWST281496303613KDW0.28
DIN808-32-B16-68-EWST321668343716BEW0.284
DIN808-32-K16-68-EWST321668343716KEW0.279
DIN808-32-B16-105-DWST3216105343716BDW0.424
DIN808-32-K16-105-DWST3216105343716KDW0.417
DIN808-32-B20-86-EWST322086433824BEW0.32
DIN808-32-K20-86-EWST322086433824KEW0.313
DIN808-32-B20-124-DWST3220124433824BDW0.461
DIN808-32-K20-124-DWST3220124433824KDW0.453
DIN808-36-B18-74-EWST361874374017BEW0.378
DIN808-36-K18-74-EWST361874374017KEW0.373
DIN808-36-B18-114-DWST3618114374017BDW0.554
DIN808-36-K18-114-DWST3618114374017KDW0.558
DIN808-42-B20-82-EWST422082414618BEW0.45
DIN808-42-K20-82-EWST422082414618KEW0.595
DIN808-42-B20-128-DWST4220128414618BDW0.898
DIN808-42-K20-128-DWST4220128414618KDW0.889
DIN808-42-B25-108-EWST4225108544831BEW0.718
DIN808-42-K25-108-EWST4225108544831KEW0.703
DIN808-42-B25-156-DWST4225156544831BDW1.025
DIN808-42-K25-156-DWST4225156544831KEW1.006
DIN808-45-B22-95-EWST45229547.55022BEW0.771
DIN808-45-K22-95-EWST45229547.55022KEW0.771
DIN808-45-B22-145-DWST452214547.55022BDW1.125
DIN808-45-K22-145-DWST452214547.55022KDW1.117
DIN808-50-B25-108-EWST5025108545526BEW1.095
DIN808-50-K25-108-EWST5025108545526KEW1.085
DIN808-50-B25-163-DWST5025163545526BDW1.594
DIN808-50-K25-163-DWST5025163545526KDW1.59
DIN808-50-B30-132-EWST5030132665638BEW1.234
DIN808-50-K30-132-EWST5030132665638KEW1.229
DIN808-50-B30-188-DWST5030188665638BDW1.751
DIN808-50-K30-188-DWST5030188665638KDW1.714
DIN808-58-B30-122-EWST5830122616829BEW1.653
DIN808-58-K30-122-EWST5830122616829KEW1.631
DIN808-58-B30-190-DWST5830190616829BDW2.496
DIN808-58-K30-190-DWST5830190616829KDW2.513
DIN808-58-B32-130-EWST5832130656833BEW1.723
DIN808-58-K32-130-EWST5832130656833KEW1.718
DIN808-58-B32-198-DWST5832198656833BDW2.552
DIN808-58-K32-198-DWST5832198656833KDW2.541
DIN808-70-B35-140-EWST7035140707235BEW0
DIN808-70-B35-212-DWST7035212707235BDW0
DIN808-32-B16-104-DW0.424
DIN808-32-K16-104-DW0.417
