GN115
Latch, Locating Ring Black Plastic Coated, Not Lockable
We are closed for the Bank Holiday. All orders placed over the weekend will be processed on Tuesday 27th May.
We are closed for the Bank Holiday. All orders placed over the weekend will be processed on Tuesday 27th May.
Please select desired options to reveal part number, price and availability
Options
Type SC - Operation with key (same lock)
Type SU - Operation with key (different lock)
Type SCK - Operation with wing knob (same lock)
Type SUK - Operation with wing knob (different lock)
Type SCT - Operation with T-Handle (same lock)
Type SUT - Operation with T-handle (different lock)
Type LCG - Operation with lever handle (same lock)
Type LUG - Operation with lever handle (different lock)
Product Description

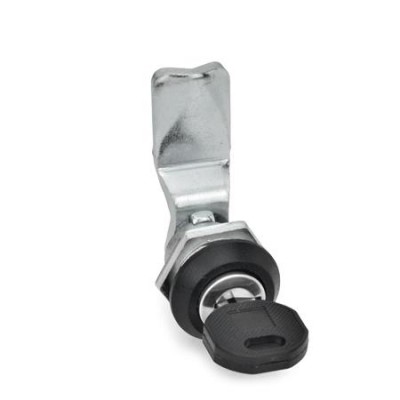

GN115 Latch, Black Plastic Coated, Lockable
The lockable latch GN 115 locks by a turning operation limited to 90° which moves the locking behind the door frame. The bevels of the locking ease the closing of the door.
Latches with different cranks cover a range A from 4 to 50 mm.
The types with a different lock are available in more than 200 variants, whose keys are marked by numbers.
The delivery includes a separately enclosed latch as well as two keys which are removable in both end positions.
Specification
Lock housing - Zinc die casting
Locating ring - plastic coated, black, RAL 9005, textured finish
All other parts - Steel zinc plated, blue passivated
Key - Nickel silver with plastic hand piece
Wing knob / T-Handle - Plastic (Polyamide PA), black, matt
