GN129 Hinge, Steel, Zinc Plated With Nut & Bolt Mounting

CloseNextPrevious



CloseNextPrevious

Type: D - consisting of three parts



CloseNextPrevious

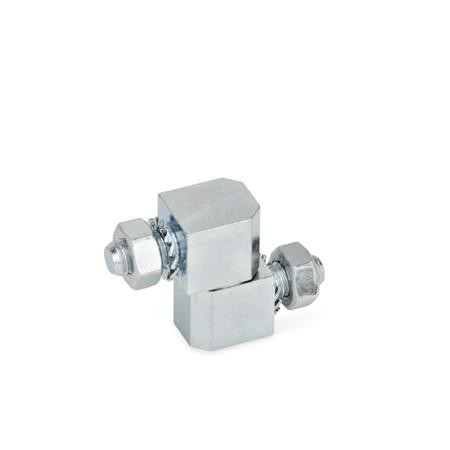

Type: Z - consisting of two parts



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type D - consisting of three parts

Type Z - consisting of two parts

CAD Viewer Technical Data

Product Description

GN129 Hinge, Steel, Zinc Plated With Nut & Bolt Mounting

Hinges GN 129 are used for doors which are flush with the frame on the outside. The hinges are normally arranged to the side of the door.

In the two-part design, the door can be unhinged with two identically arranged hinges.

The three-part hinges, which generally cannot be unhinged and are mounted inside, are suitable for doors and flaps which, as an anti-tamper precaution, must not be dismountable from the outside.

Specification

Steel - zinc plated, blue passivated.

Pin - Brass, nickel-plated.

Washer - Brass, nickel-plated.

Hexagon nut ISO 4032 - Steel, zinc plated, blue passivated.

Serrated washer DIN 6797 for securing screws - zinc plated, blue passivated.
