Standard Machine Elements > Guides, Spindles, Ball Rollers, Slide Units, Guide Rails & Linear Actuators > Linear Actuators / Linear Actuator Connectors
< Previous Product Next Product >

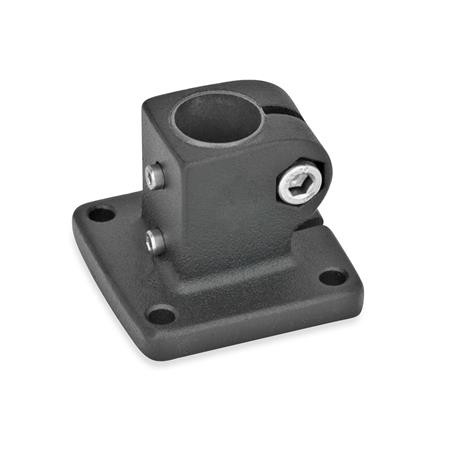

GN162.1 Base Plate Linear Actuator Connector, Aluminum




Identification no. 2 with clamping screw DIN912, stainless steel

Select Values to Buy:

Tech Spec:


GN162.1 Base Plate Linear Actuator Connector, Aluminium

Stainless Steel Linear actuator connectors GN162.1 are normally supplied only in connection with a mounted linear actuator and for function control.

By means of the clamping screw on the guide bore d1 the movement can either be set or the linear actuator connector can be clamped (after setting of final adjustment).

The standard clamping bolts are socket cap screws DIN912. They can be used in place of adjustable clamping levers GN911 (see table of dimensions).


Aluminium, plastic coated, black, RAL 9005, textured finish SW

Guide bore mechanically machined

Slide bush, Polyamide

Socket cap screws DIN 912 Steel zinc plated / Stainless Steel AISI 304

Hexagon nuts DIN 985 Steel zinc plated / Stainless Steel AISI 304

Adjustable clamping levers GN911 Zinc die casting

Inserts / Distance bushings Stainless Steel AISI 303

RoHS compliant

Select / Deselect Visible Columns
PartCoded1Id. No.Finishd2d3d4ktx1x2y1y2Clamping lever for d3MaterialMass
