GN165 Base Plate Connectors Clamps Split Assembly

Standard Machine Elements > Tube Clamp Connectors, Clamp mountings & Connecting Elements > Tube Clamp Connectors
< Previous Product Next Product >

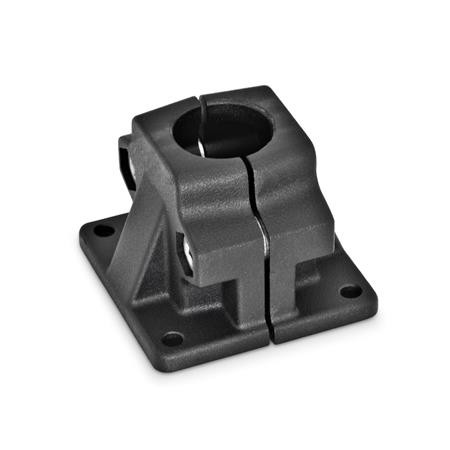

GN165 Base Plate Connector Clamp, Aluminium, Split Assembly



Identification No. 2 - with 2 clamping screws DIN912, stainless steel

Select Values to Buy:

Tech Spec:



GN165 Base Plate Connector Clamp, Aluminium, Split Assembly

The clamping bores of the base plate connector clamps GN165 are not machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

The standard clamping bolts are socket cap screws DIN912. They can be used in place of adjustable clamping levers GN911 (see table of dimensions).

Specification

Aluminium, plastic coated, black, RAL 9005, textured finish SW.  Blank BL, matt shot-blasted

Clamping bores not machined

Cap screws DIN912, steel, zinc plated / stainless steel AISI 304

Hexagon nuts DIN985, steel, zinc plated / stainless steel AISI 304

Adjustable clamping lever GN911

Inserts / distance bushings, stainless steel AISI 303

RoHS compliant
