GN171 Flanged Base Plate Connector Clamp, Aluminium

CloseNextPrevious



CloseNextPrevious

GN171: Flanged Base Plate Connector Clamp
Finish: BL - Blank



CloseNextPrevious

GN171: Flanged Base Plate Connector Clamp

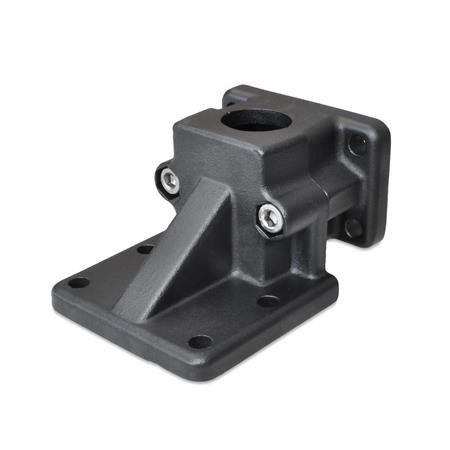

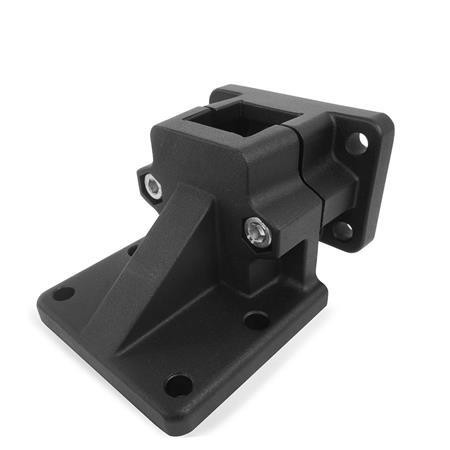

Finish: SW - Black, Textured Finish



CAD Viewer Technical Data

Series Selector

Options

Identification no. 2 with 2 clamping screws DIN912, stainless steel

Bore Code B - Bore d1

Bore Code V - Square S

CAD Viewer Technical Data

Product Description

GN171 Flanged Base Plate Connector Clamp, Aluminium, Split Assembly

The clamping bores of the flanged base plate connector clamps, GN 171, are not machined and are designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462.

The square versions are also suitable for profile systems.

The standard clamping bolts are socket cap screws DIN912. They can be replaced with adjustable clamping levers GN911.

Specification

Aluminium.

Plastic coated, black, RAL 9005, textured finish SW.

Blank, matt shot-blasted BL.

Clamping bores not machined

Socket cap screws DIN912, Stainless Steel AISI 304

Hexagon nuts DIN985, Stainless Steel AISI 304

Accessory

Clamping kits GN911.
