GN115
Latch with Key, Locating Ring Chrome Plated, Lockable
Please select desired options to reveal part number, price and availability
Options

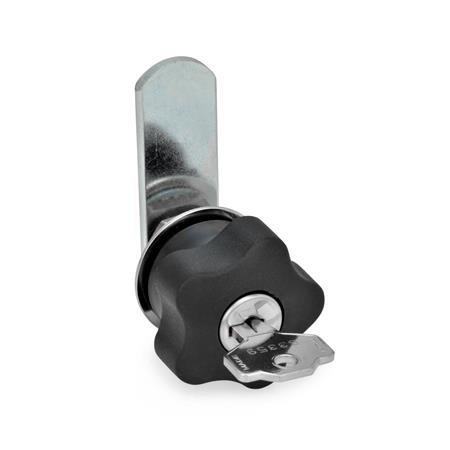

Type A - With straight latch

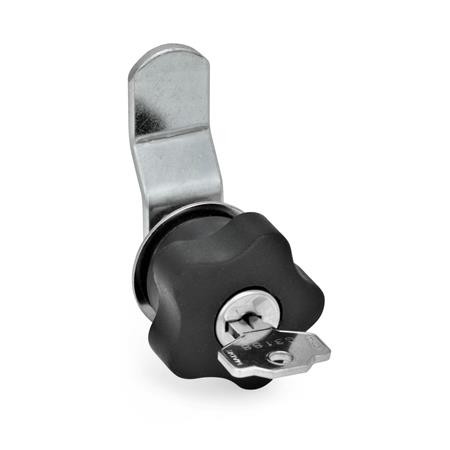

Type B - With offset latch
Specification SL - Lockable by anti-clockwise turn
Specification SR - Lockable by clockwise turn

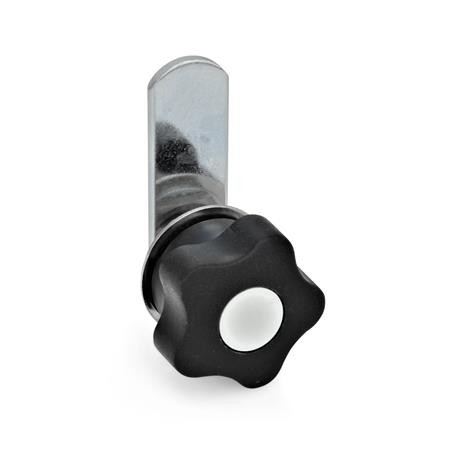

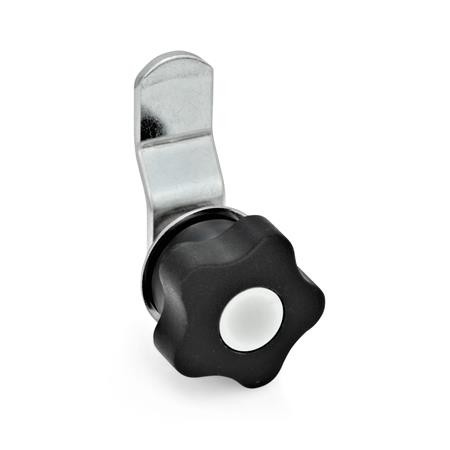

Specification OS - Without lock, moveable by 90 degrees
Product Description
GN217 Latches, With and Without Lock
Latches GN 217 are available with or without a lock. The lockable version is supplied with two keys. The keys are numbered, there are 480 different combinations.
The key can be withdrawn from the lock in both end positions.
Specification
Star knob - Plastic technoploymer (Polypropylene PP), black, matte finish, temperature resistant up to 90 °C
Latch - Sheet steel, zinc plated
Key - Brass, nickel plated
Other parts - Steel zinc plated, brass or stainless steel respectively.
On Request
Latches with identical lock
Latches with central key
