GN2282 Screw Mounted Spirit Level, Front, Top or Back View

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Sensitivity - 6 Angle minutes, bubble moves by 2mm.

Sensitivity - 50 Angle minutes, bubble moves by 2mm.

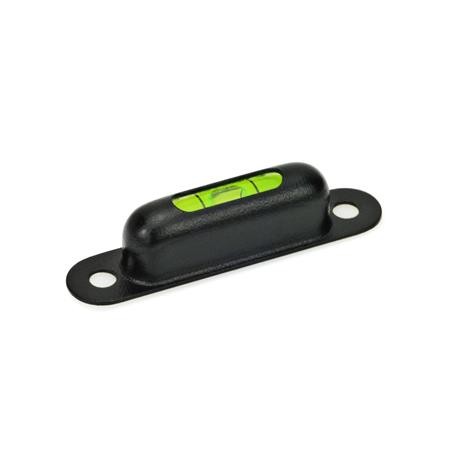

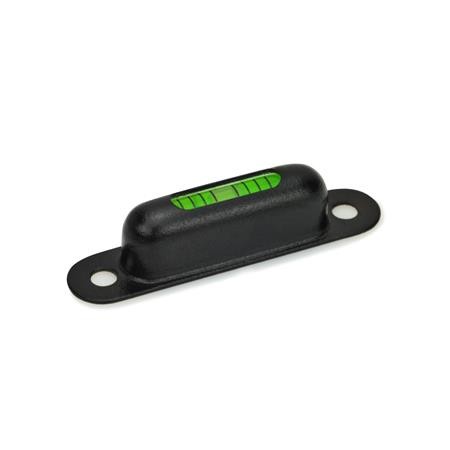

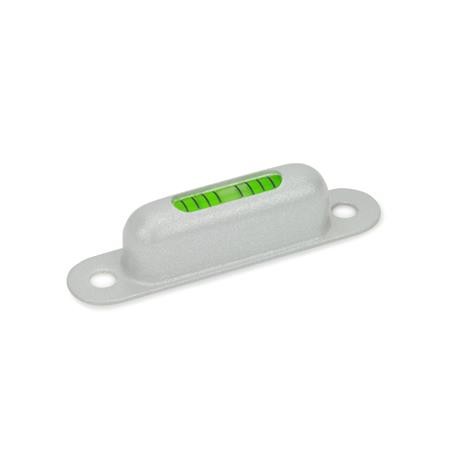

Identification number - 1 Viewing window top.

Identification number - 2 Viewing window top & front.

Identification number - 3 Viewing window top, front & back.

CAD Viewer Technical Data

Product Description

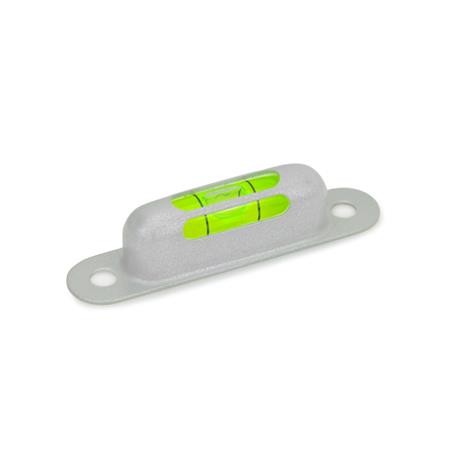

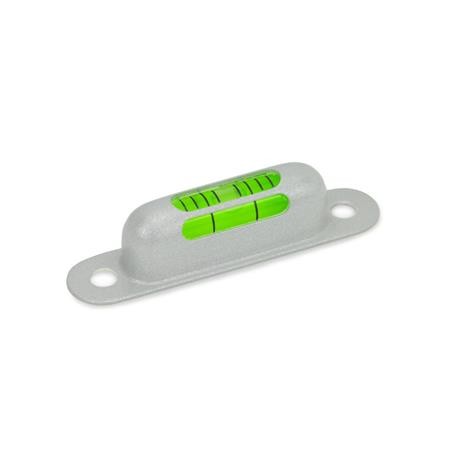

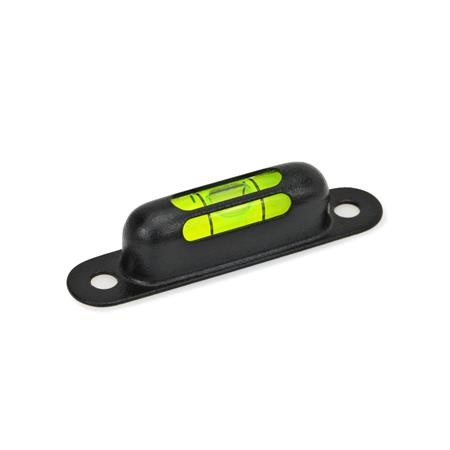

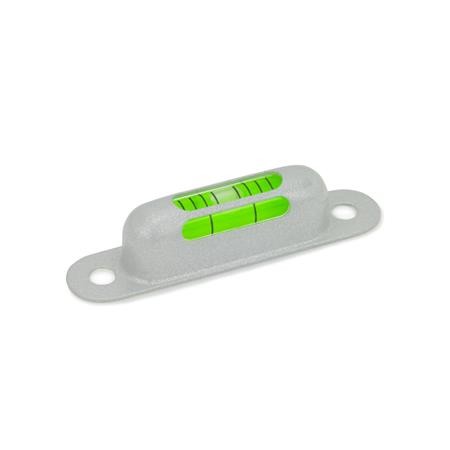

GN2282 Screw Mounted Spirit Level, Front, Top or Back View.

These screw mounted spirit levels are used to check the horizontal position of jigs, machines, devices, appliances and instruments. Variants include a viewing window at the front, at the front and top, or at the front, top and back.

The spirit levels are aligned in relation to the finished reference surface so that the bubble is centred in the middle of the marking lines once the horizontal position of the contact surface in the longitudinal direction is reached.

Specification

Housing - Brass BR, plastic coated, black, RAL 9005, textured finish MSW. Silver, RAL 9006, textured finish MSR.

Spirit level element - Glass, plastic body.

Filling - Green, transparent G.

Casting compound - Mineral based.

On Request

Filling - Colourless.

Other sensitivities.

Other colours.
