GN26b, Bolt Connectors, For Aluminium Profiles, b-Modular System, Steel

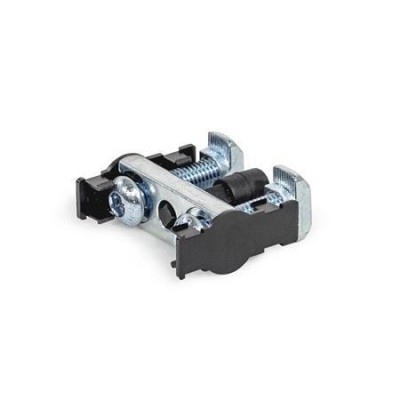

CloseNextPreviousGN26b Bolt Connectors for Aluminium Profiles, b-Modular System
Size 30 / 40 / 45 / 60

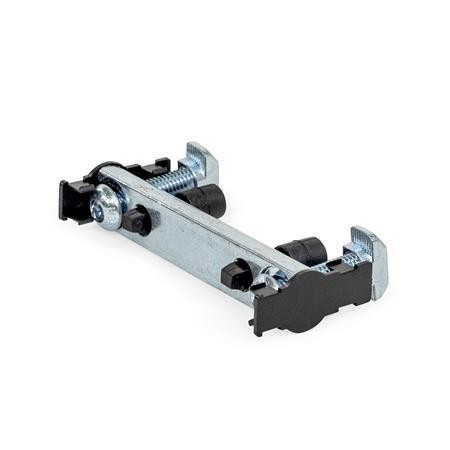

CloseNextPreviousGN26b Bolt Connectors for Aluminium Profiles, b-Modular System
Size 80 / 90
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type N - Nut without increased torque
Code C - With fastening set
Product Description
GN26b, Bolt Connectors, For Aluminium Profiles, b-Modular System, Steel
Bolt connectors GN 26b fasten aluminium profiles at right angles and secure them against twisting. Only one profile has to be machined.
The connection can be freely positioned and slid along the slot. It is suitable for absorbing high loads, including torsional loads in particular.
The cover caps ensure a visually appealing appearance. If panels are used, they must be suitably pocketed.
Specification
- Connector, screws, T-slot nuts - Steel, zince plated, blue passivated SZ
- Cover cap - plastic (Polyamide PA), black S
- Guide pin - plastic, black
CAD Viewer
Technical Data
