GN296 Installation Kits Position Indicators GN291.1 for Square Linear Actuators retrofitted

Position Indicators
Standard Machine Elements > Guides, Spindles, Ball Rollers, Slide Units, Guide Rails & Linear Actuators > Linear Actuators / Linear Actuator Connectors
< Previous Product Next Product >

GN296 Installation Kit, for Position Indicators

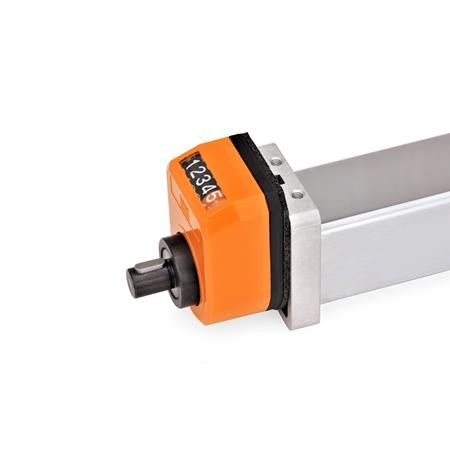

Coding 1 - for mechanical position indicators GN953 / GN954 / GN955

Coding 2 - for electronic position indicators GN9053 / GN9054

Select Values to Buy:

Tech Spec:



GN296 Installation Kit, for Position Indicators for Square Linear Actuators GN291.1

Using this installation kit, a square linear actuator can be fitted with a digital postion indicator.

The installation kit comprises of an adaptor shaft and a torque support, including attachment screws.

It is also possible to retrofit this kit. The handwheel is removed, the kit is mounted and the handwheel is refitted.

Generally a counter is chosen which is matched to the pitch of the spindle with trapezoidal thread so the indicator after one complete revolution accords to the pitch of the spindle.

Note: Position indicators and handwheels are to be ordered separately.

Specification

Adaptor shaft - Steel, blackened.

Torque support - Aluminum, blank, ground

RoHS compliant
