GN415 Side Thrust Pin, Zinc Die Cast, Plastic Coated

Choose your Part

Please select desired options to reveal part number, price and availability

Options

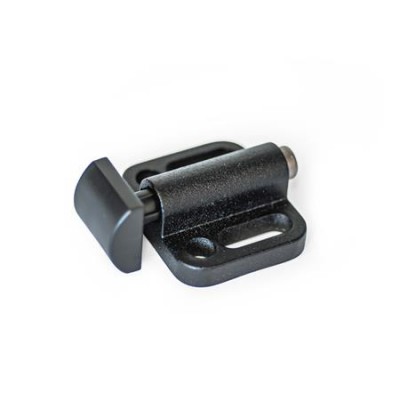

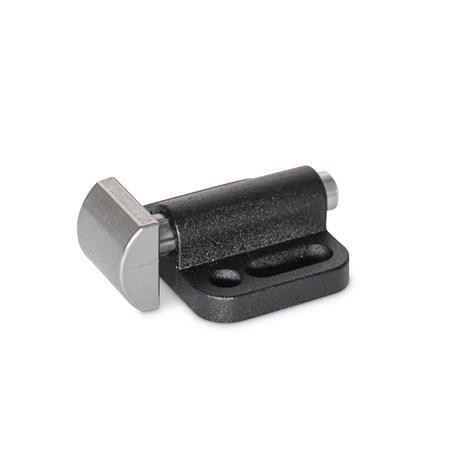

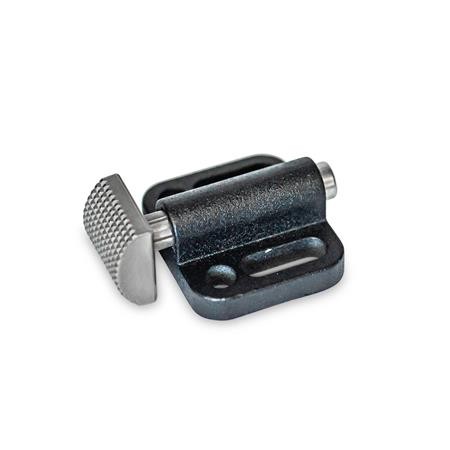

Type A1 - Cylinder, vertical

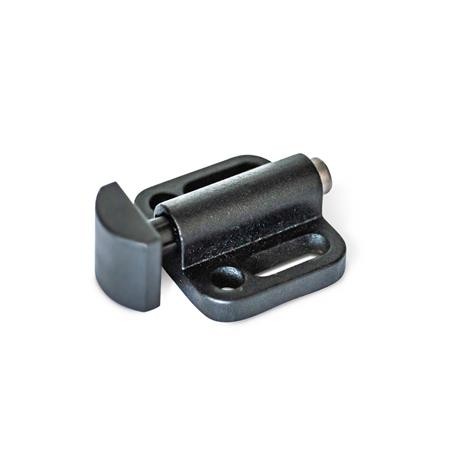

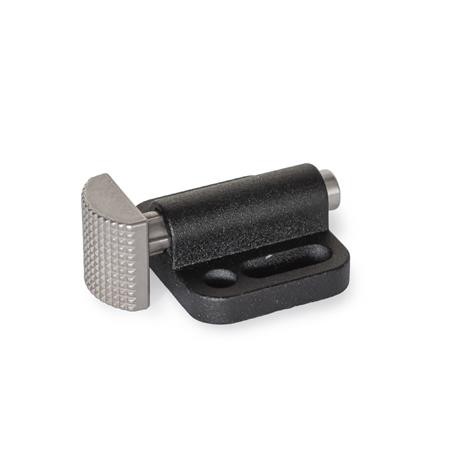

Type A2 -  Cylinder, horizontal

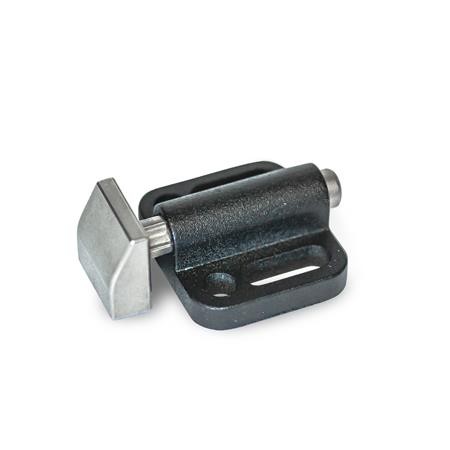

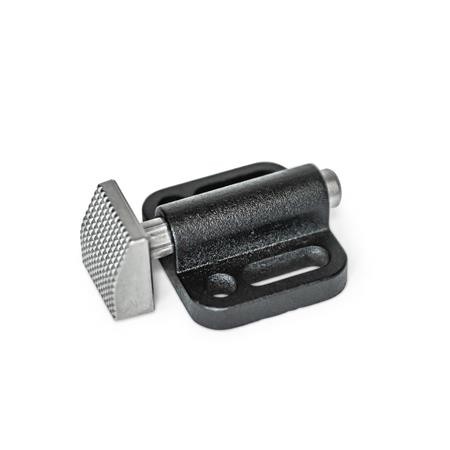

Type B1 - Wedge, top
Type B2 - Wedge, down
Type B3 - Wedge, right

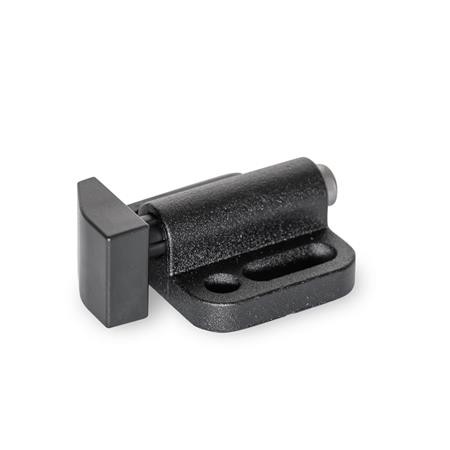

Type B4 - Wedge, left
Identification no. 1 - standard spring load
Identification no. 2 - high spring load

Product description

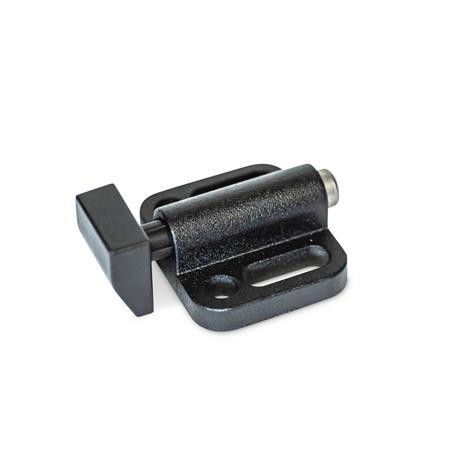

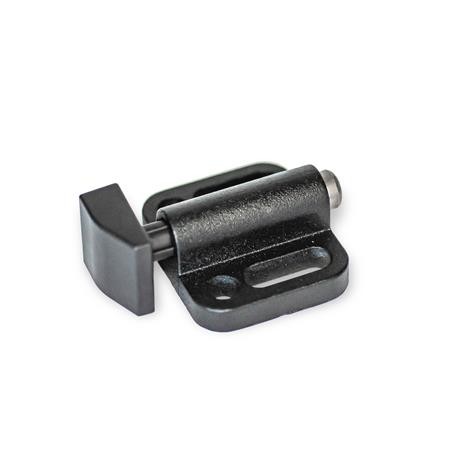

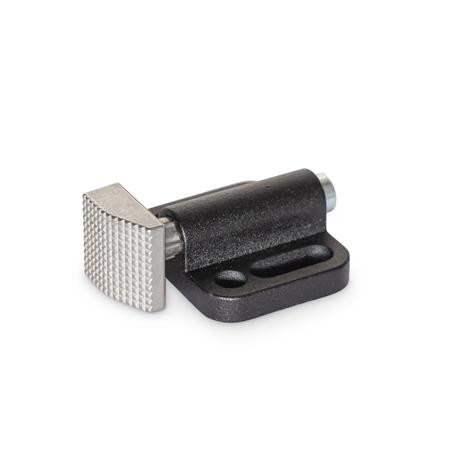

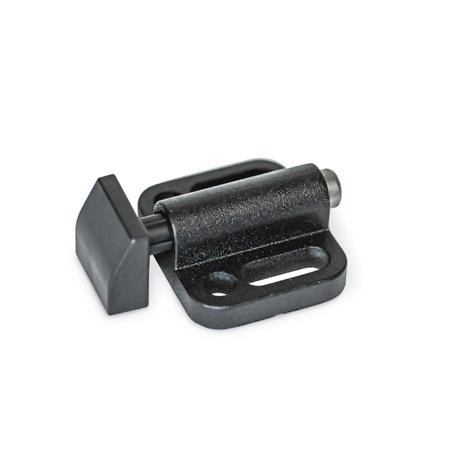

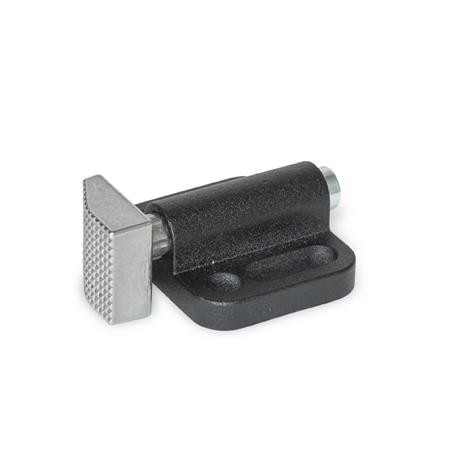

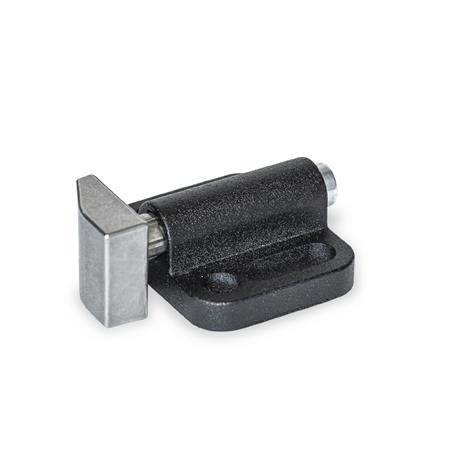

GN415 Side Thrust Pin, Zinc Die Cast, Plastic Coated

Side thrust pins GN 415 have a compact design and offer maximum flexibility for tensioning and holding parts. A variety of thrust pin designs as well as two different spring forces are available.

Depending on the installation situation, the side thrust pins offer a pull-down effect operating within height h2. They are fastened by means of holes or slots.

The side thrust pins are installed fully assembled. If necessary, the installation position of the thrust pin slide can be rotated by 4x90° according to the sketch. When installing version KG, the shaped thread in the plastic slider should be reused and the tightening torque limited.

Specification

Housing - Zinc die casting ZD, plastic coated, black, RAL 9005, matte, textured finish

Thrust pin - Plastic POM smooth black KG, Stainless Steel smooth metal injection molded AISI 630 NG, Stainless Steel ribbed metal injection molded AISI 630 NR

Spring - Stainless Steel AISI 301

Screw - Steel, zinc nickel coated (Version KG), Stainless Steel A2(Version NG / NR)
