GN615.10 Spring Plungers, with Ceramic Ball, with Friction Bearing, with Slot, Stainless Steel

Close Next Previous

Close Next Previous

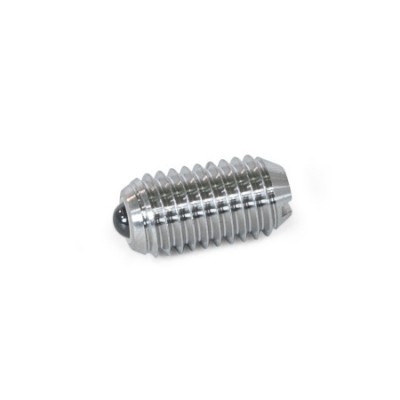

GN615.10 Spring Plungers, Friction Bearing, Stainless Steel
Type KN Standard Spring Load

Close Next Previous

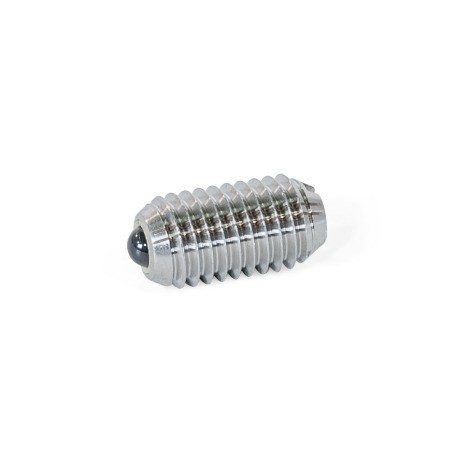

GN615.10 Spring Plungers, Friction Bearing, Stainless Steel
Type KSN High Spring Load

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type KN - Stainless Steel, standard spring load

Type KSN - Stainless Steel, high spring load

Product Description

GN615.10 Spring Plungers, with Ceramic Ball, with Friction Bearing, with Slot, Stainless Steel

Spring plungers GN 615.10 are used for locking as well as for push-on and push-off functions.

The ball moves freely within a plastic friction bearing, allowing objects to roll along the ball. This minimizes wear on the other object and optimizes the holding function.

Due to the materials used, the spring plungers are suitable for use in highly corrosive environments. In addition, the ceramic ball and the plastic friction bearing are low wearing, anti-magnetic and electrically insulating.

Specification

Housing - stainless steel
Ball - ceramic. Silicon nitride, black
Spring - stainless steel
Friction bearing - plastic, operating temperature -30º C to +90º C
Identification of type KSN - housing with two longitudinal markings
