Please select desired options to reveal part number, price and availability
Options
Type A - without lock nut
Type AK - with lock nut
Product Description

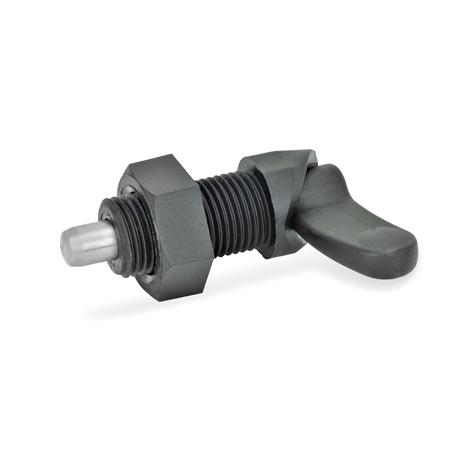

GN672 Cam Action Indexing Plunger, Plastic Threaded Body
Cam action indexing plungers GN 672 are used in cases where the locking pin must not protrude all the time and must be retractable. The locking pin retracts by rotating the lock through 180°. A groove keeps the plunger in this position.
These cam action indexing plungers with plastic threaded body are a reasonably priced, cost effective version.
Specification
Threaded body - plastic (Polyamode PA-HP) Glass fibre reinforced, temperature resistant to 130° C, black matte finish.
Plunger pin - Steel ST, hardened, blackened. Stainless steel AISI 303 NI
Pressure spring - Stainless steel AISI 302
Latch - Plastic (Polyamide PA) Black, matte finish, not removable
Lock nut - Plastic, matte finish
