GN702 Stop Lock, Zinc Die Cast, Plastic Handle, with Four Indexing Positions

Choose your Part

Please select desired options to reveal part number, price and availability

Options

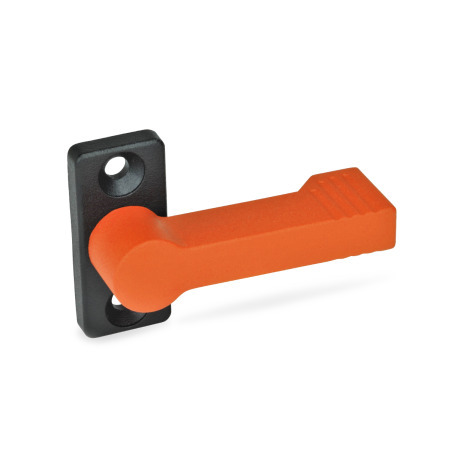

Type A - with flange for surface mounting

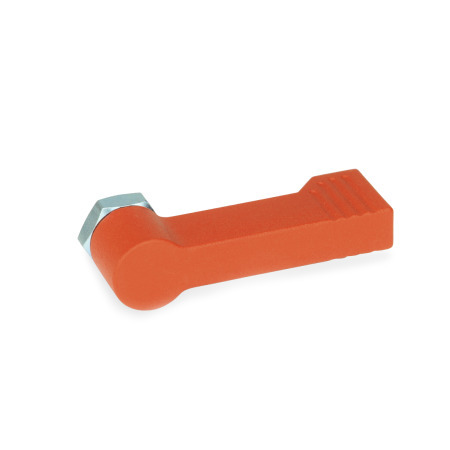

Type B - with internal thread

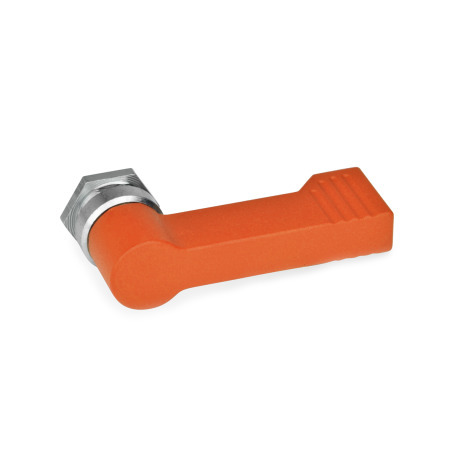

Type C - with external thread

Product Description

GN702 Stop Lock, Zinc Die Cast, Plastic Handle, with Four Indexing Positions

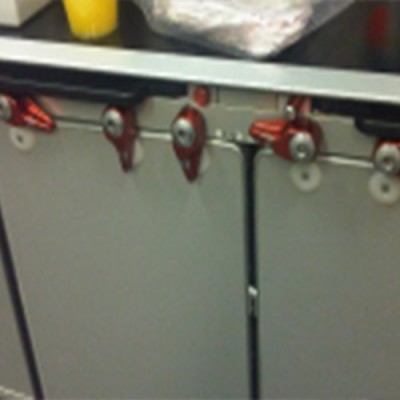

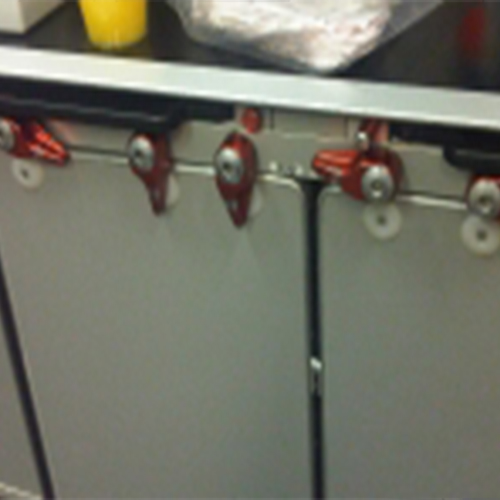

GN 702 Stop Locks offer a fast and easy way to close and hold doors, flaps, slide-in modules, drawers etc. They lock in four positions at 90 angles. They are perfect for keeping items in place during transit, but allowing quick and easy access: including trolleys, pumps, engines, motors & cable winches. They are particularly suitable for light-weight applications not exposed to dynamic loads.

To mount stop locks Type C, bore holes as shown in the diagram below must be set in the attachment surface.

These mounting holes are usually made by punching or with laser. For small series and steel sheets below 2 mm thickness, the sheet metal punches GN123 are the tool of choice.

The mounting bore holes can also be made by drilling / milling.

Specification

• Type A Zinc die casting / Plastic
• Type B & C - Steel / Plastic.
• Steel parts zinc plated, blue passivated
