GN709.1 Clamping Pad, Threaded Stud, Steel
CloseNextPreviousGN709.1: Clamping Pad - Type: RRH -
Automatic Return, Hard Metal Ball

Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type B - smooth contact face
Type R - serrated contact face
Type BR - Smooth contact face, with automatic return
Type RR - Serrated contact face, with automatic return
Type RH - Serrated contact face, with hard metal ball
Type RRH - Serrated contact face, with automatic return, with hard metal ball
Product Description

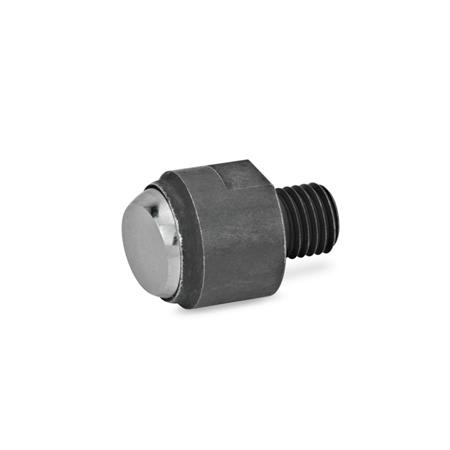

GN709.1 Clamping Pad, Threaded Stud, Steel
GN 709.1 clamping pads are used as movable supports or plungers for clamping workpieces. They can also be used as back or end stops. For cast components the use of clamping pads with a hard metal ball is recommended.
After the clamping process, the contact surfaces of clamping pads automatically reset themselves to their initial position. This prevents the bearing from jamming in an inclined position when the workpiece is inserted.
The bearing can be rotated by a maximum of 9° and is secured against further rotation.
Specification
Steel ST, tempered, phosphated.
Ball - Steel ST, hardened, blank (Type B / R / BR / RR)
Ball - Hard metal steel ST, nickel plated, (Type RH / RRH)
Spring element - Plastic (PUR) (Type BR / RR / RRH)
