GN713 Side Thrust Pin, with Thread, Steel, Optional Seal
Choose your Part
Please select desired options to reveal part number, price and availability
Options

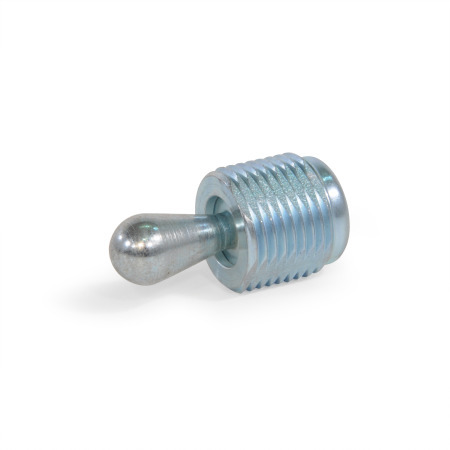

Type SA - thrust pin steel, without seal

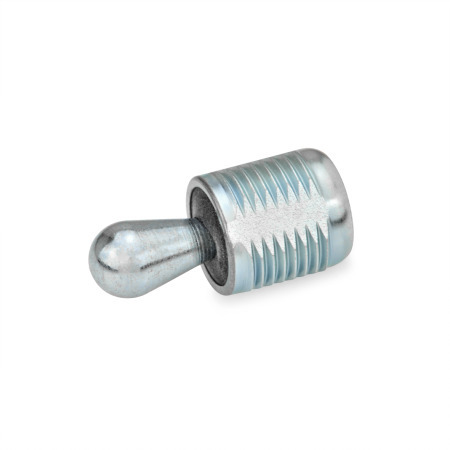

Type SB - thrust pin, steel, with seal

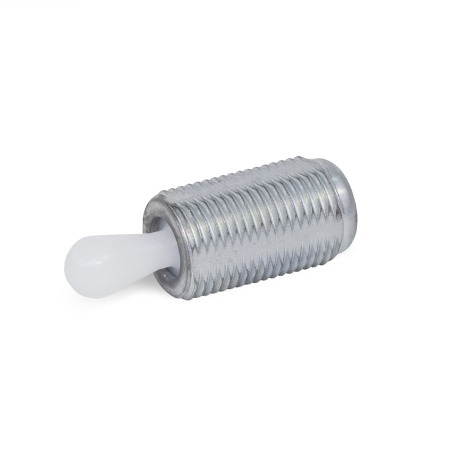

Type KA - thrust pin plastic, without seal

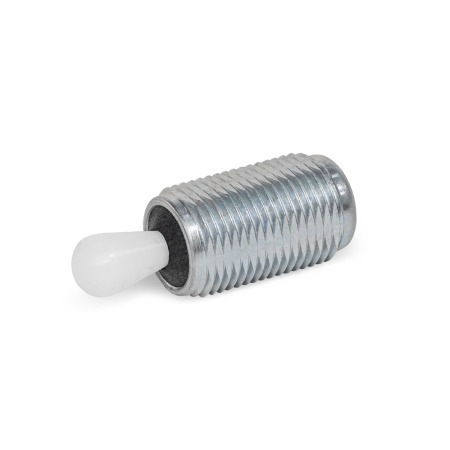

Type KB - thrust pin plastic, without seal
Product Description
GN713 Side Thrust Pin, with Thread, Steel, Optional Seal
Spring loaded side thrust pins GN 713 are versatile and practical elements for holding, positioning and clamping workpieces.
They eliminate costly alternatives, are space saving and simple to install. The protruding height of the thrust pin can be adjusted with the threaded body.
For mounting the side thrust pins a suitable mounting tool GN 713.1 is available.
Specification
Specification
Housing - steel, zinc plated, blue passivated.
Thrust Pin
- Steel for SA / SB, hardened, zinc plated, blue passivated.
- Plastic, polyacetal (POM) for KA / KB
Thrust spring
- Side thrust force light - stainless steel AISI 301
- Side thrust force medium - spring steel blackened
- Side thrust force heavy - spring steel zinc plated, blue passivated
Seal - Chloroprene rubber (CR)
Accessory
Mounting spanner GN713.1, for easy mounting.
CAD Viewer
Technical Data
