GN713 Side Thrust Pin, with Thread, Steel / Plastic, Optional Seal

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type SA - thrust pin steel, without seal

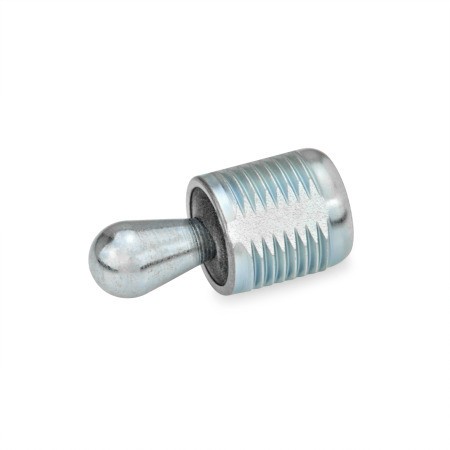

Type SB - thrust pin, steel, with seal

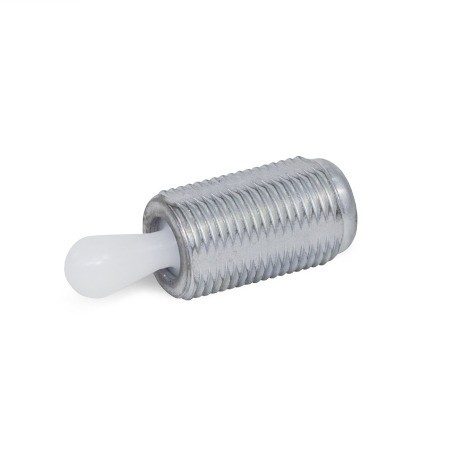

Type KA - thrust pin plastic, without seal

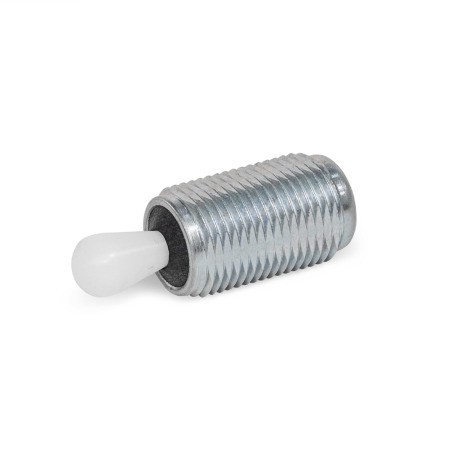

Type KB - thrust pin plastic, with seal

Product Description

GN713 Side Thrust Pin, with Thread, Steel / Plastic, Optional Seal

Spring loaded side thrust pins GN 713 are versatile and practical elements for holding, positioning and clamping workpieces.

They eliminate costly alternatives, are space saving and simple to install. The protruding height of the thrust pin can be adjusted with the threaded body.

For mounting the side thrust pins a suitable mounting tool GN 713.1 is available.

Specification

Specification

• Steel for SA / SB, hardened, zinc plated, blue passivated.
• Plastic, polyacetal (POM) for KA / KB

• Side thrust force light - stainless steel AISI 301
• Side thrust force medium - spring steel blackened
• Side thrust force heavy - spring steel zinc plated, blue passivated

Accessory

Mounting spanner GN713.1, for easy mounting.
