GN850 Hook Clamp, Pulling Action, Steel / Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type T - with draw axle

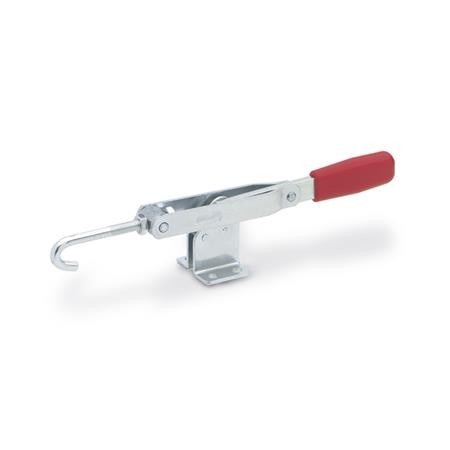

Type TF - with draw hook

Product Description

GN850 Hook Clamp, Pulling Action, Steel / Stainless Steel

Hook clamps, GN 850, ideal for secure clamping of hinged covers, lids, moulds & hatches.

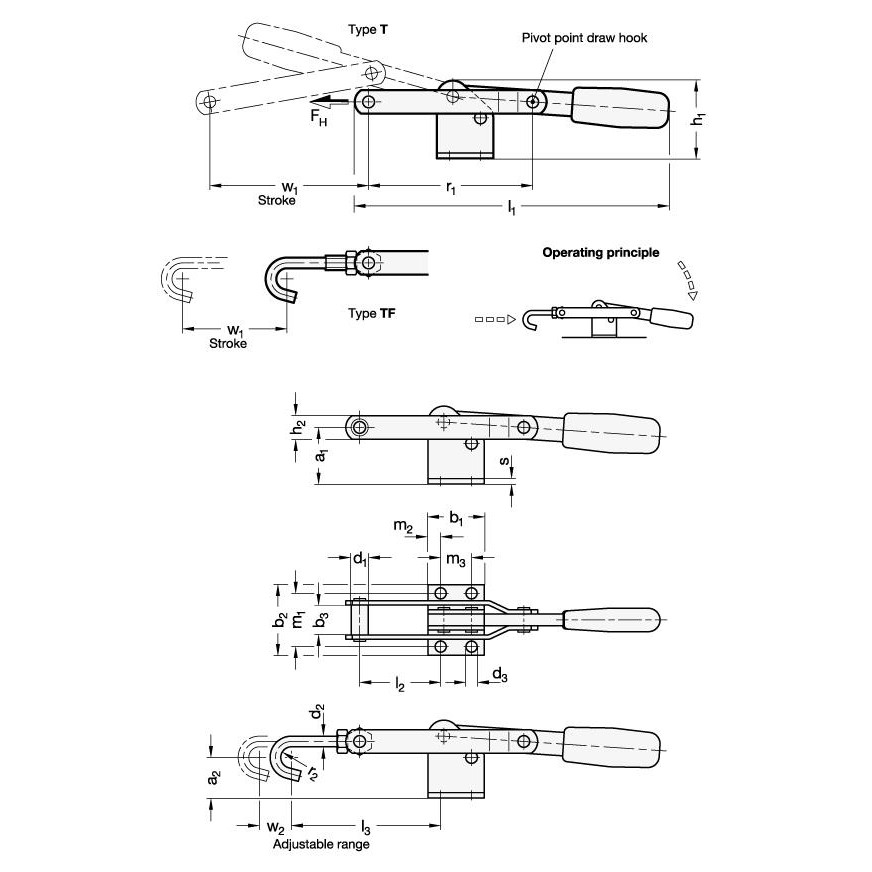

During clamping, the pivoting motion of the clamping lever is transformed into an axial movement of the draw axle or draw hook and ensures a form-fit hold.

Latch type toggle clamps of type T are equipped with a draw axle firmly attached to the clamping arm. Type TF has a draw hook that can be adjusted within the adjustable range w2. The draw hook is supplied unmounted.

Specification

• Tensioning Mechanism
• Steel ST. Sheet metal parts - case hardened steel C10, zinc plated, blue passivated. Bearing pins - tempered. Bearing rivets - case hardened

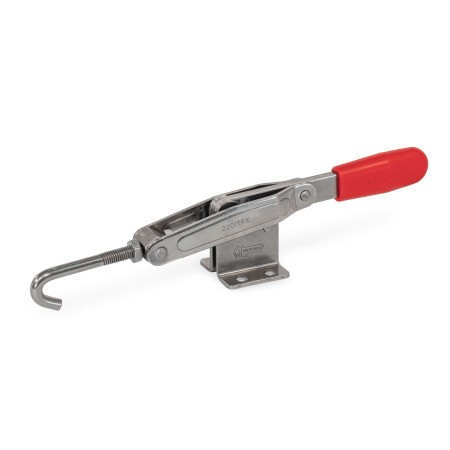

• Stainless steel AISI 304 NI
• Moving parts lubricated with special grease.
• Draw Hook
• Steel ST 37 for ST, zinc plated, blue passivated.
• Stainless steel AISI 301 for NI
• Handle - plastic, red, oil resistant.

On Request

Without draw hook - Type TFN
