GN924 Spoked Handwheel, Aluminium, Plastic Coated
CloseNextPreviousGN924: Spoked Handwheel - Type: A
Colour: SR - Silver, Textured Finish

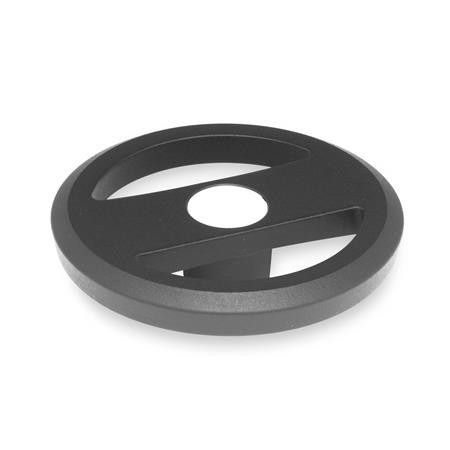

CloseNextPreviousGN924: Spoked Handwheel - Type: A
Colour: SW - Black, Textured Finish

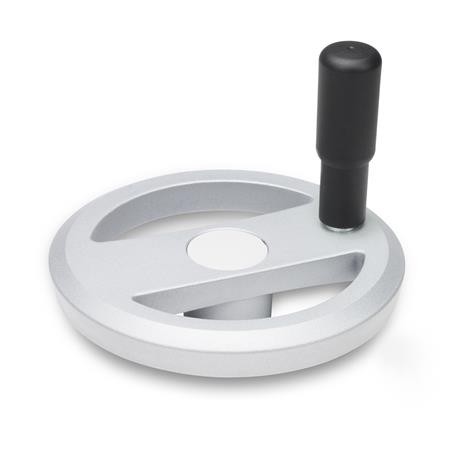

CloseNextPreviousGN924: Spoked Handwheel - Type: R
Colour: SR - Silver, Textured Finish
CloseNextPreviousGN924: Spoked Handwheel - Type: R
Colour: SW - Black, Textured Finish
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Bore Code - B - Plain bore, without keyway.
Bore Code - K - With keyway
Type A - Without handle
Type R - With Revolving Handle GN798
Product Description
GN924 Powder Coated Aluminium Spoked Handwheel
These GN 924 spoked handwheels have a modern and attractive design. They are suitable for a wide range of applications and are a cost-effective choice.
The removable plastic cover shrouds the fixing components, such as screws and countersunk washers as well as the shaft end.
Specification
- Aluminium die casting - Powder coated.
- Black, RAL 9005, textured finish SW.
- Silver, RAL 9006, textured finish SR
- Hub - Machined.
- Rim - turned concentric and square to bore < 0.4
- Revolving handles GN798 - Plastic, Technoplymer, black, matt. Spindle - Steel, zinc plated, blue passivated.
Accessory
Countersunk washers GN184
CAD Viewer
Technical Data
