H9500 Series - ISO Standard, High Force Cylinder

ISO - VDI - BMW - VW

CloseNextPrevious



CloseNextPrevious

H: Gas Spring



CloseNextPrevious



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

CAD Viewer Technical Data

Product Description

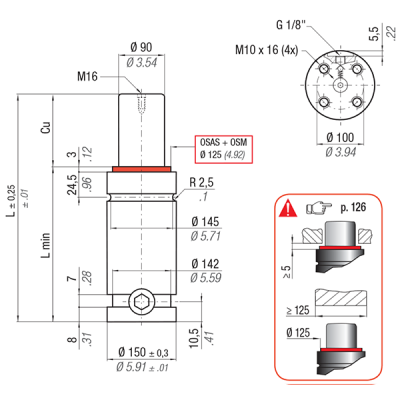

H9500 - ISO Standard, High Force

Our most cost-effective Gas Spring, if you want a viable solution to an existing tool, or looking to design new tooling within a recession proof budget the H series Gas Spring ticks all the boxes.

Available in contained & Linkable (N) formats. Look at the HF Series for threaded body types.

F1i = Isothermal end force at 100% Cu

F1p = Polytrophic end force at 100% Cu (See Techincal Data - Catalogue Specification for more information)

International/Automotive Standards
ISO 11901-4 - VDI 3003 Blatt 4 - B2 4008 (BMW) - 075.90.65 (FCA) - 39D 838 (VW)
