GN 817.1 Indexing Plungers with Red Knob, With or Without Rest Position

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type B - without rest position

Type C - with rest position

CAD Viewer Technical Data

Product Description

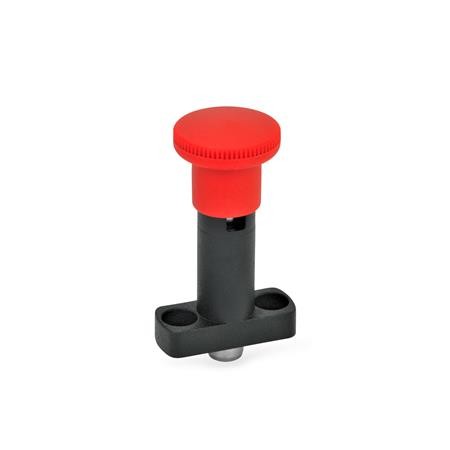

GN817.1 Indexing Plungers with Red Knob, With or Without Rest Position

Indexing plungers GN 817.1 (Type C) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° after being retracted. A notch keeps the plunger in this position.

Indexing plungers with T handle - On Request

Specification

Guide - Zinc die casting, plasic coated, black, matt, textured finish

Pin - Stainless Steel NI, AISI 303, chemically nickel plated

Knob - Plastic, Technopolymer (Polyamide PA), red RT RAL 3000, not removable
