Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

GN822.1 Mini Indexing Plunger, open Indexing Mechanism

images/300/GN822.1_Mini_indexing_plungers_open_indexing_mechanism_sketch_H.png

Type B - without rest position

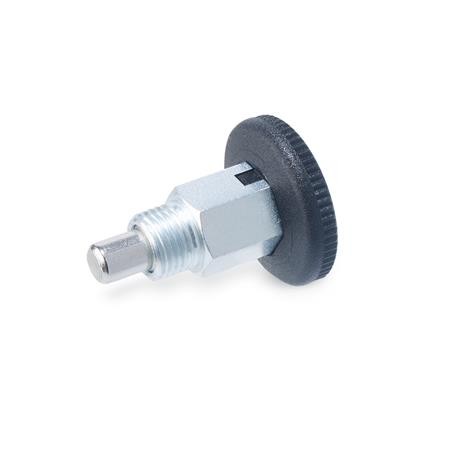

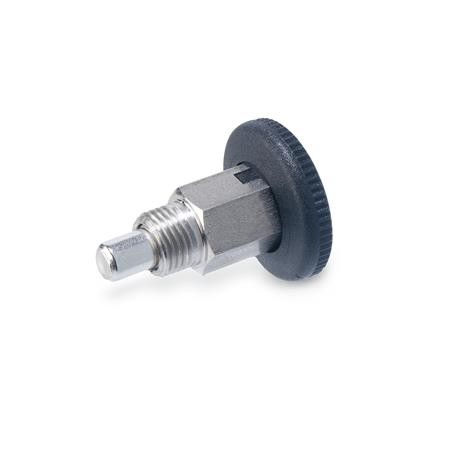

Type C - with rest position

Select Values to Buy:

Tech Spec:



GN822.1 Mini Indexing Plunger, open Indexing Mechanism

Mini indexing plungers GN822.1 are known for their small dimensions. They have been designed for installation in thin walled sheet metal constructions.

Type C with rest position is used in such applications where the plunger must not protrude continually. In that case the knob is retracted and afterwards turned by 90°. A notch keeps the knob in this position.

Distance bushings GN609 (for indexing plungers)

Specification

Steel ST, zinc plated, blue passivated

Stainless Steel NI AISI 303

Plunger - Stainless Steel NI AISI 303

Spring - Stainless Steel NI AISI 301

Knob Plastic - Technopolymer (Polyamide PA), black, matt finish, not removable

RoHS compliant



Select / Deselect Visible Columns
Close
Hided1Show
HideTypeShow
HideMaterialShow
Hided2Show
Hided3Show
Hidel1Show
Hidel2Show
Hidel3Show
Hidel4Show
HideA/FShow
HideSpring load
in
N initial
Show
HideSpring load
in
N end
Show
PartCoded1TypeMateriald2d3l1l2l3l4A/FSpring load
in
N initial
Spring load
in
N end
Mass

GN822.1-4-B-ST4BSTM8x0,752126.5553.5104.5120.013
GN822.1-4-B-NI4BNIM8x0,752126.5553.5104.5120.013
GN822.1-4-C-ST4CSTM8x0,752126.5553.5104.5120.012
GN822.1-4-C-NI4CNIM8x0,752126.5553.5104.5120.012
GN822.1-5-B-ST5BSTM8x0,752126.5553.5104.5120.013
GN822.1-5-B-NI5BNIM8x0,752126.5553.5104.5120.013
GN822.1-5-C-ST5CSTM8x0,752126.5553.5104.5120.012
GN822.1-5-C-NI5CNIM8x0,752126.5553.5104.5120.013
GN822.1-6-B-ST6BSTM10x12534774.5125180.023
GN822.1-6-B-NI6BNIM10x12534774.5125180.023
GN822.1-6-C-ST6CSTM10x12534774.5125180.02
GN822.1-6-C-NI6CNIM10x12534774.5125180.022
GN822.1-7-B-ST7BSTM10x12534774.5125180.023
GN822.1-7-B-NI7BNIM10x12534774.5125180.023
GN822.1-7-C-ST7CSTM10x12534774.5125180.022
GN822.1-7-C-NI7CNIM10x12534774.5125180.023
