GN279 Swivel Clamp Connectors, Split Assembly

CloseNextPrevious



CloseNextPrevious

GN279: Swivel Clamp Connector
Bore d1: B45 - Finish: BL



CloseNextPrevious

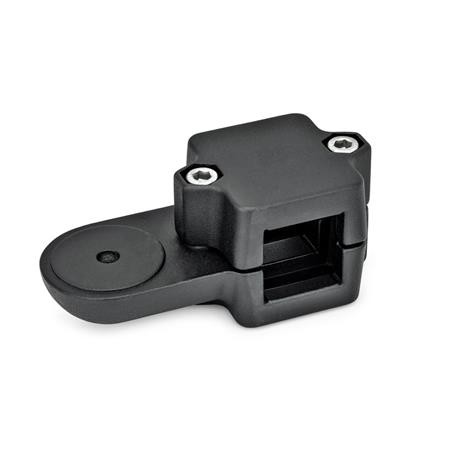

GN279: Swivel Clamp Connector
Square s1: V45 - Finish: SW



CloseNextPrevious

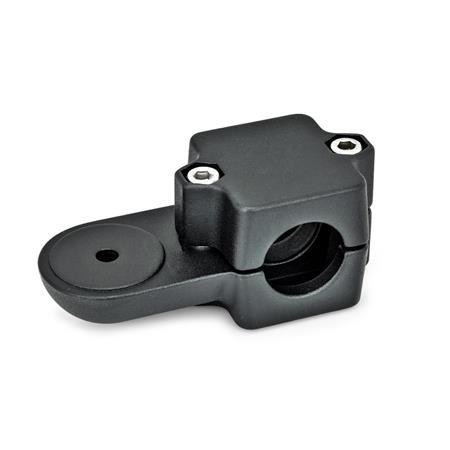

GN279: Swivel Clamp Connector
Bore d1: B45 - Finish: SW



CloseNextPrevious

GN279: Swivel Clamp Connector

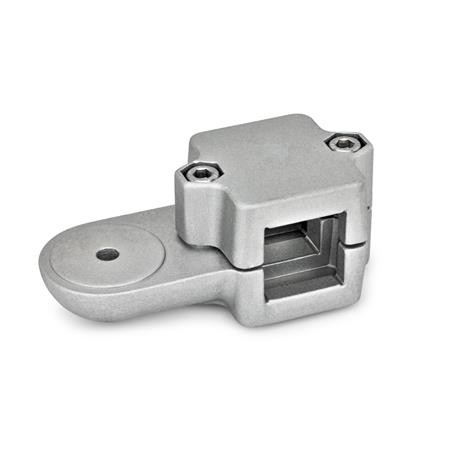

Square s1: V45 - Finish: BL



CAD Viewer Technical Data

Series Selector

Options

Type OZ - Without centring step

Identification no. 2 with one clamping screw DIN912, Stainless Steel

CAD Viewer Technical Data

Product Description

GN279 Swivel Clamp Connector, Split Assembly

The clamping bore of the swivel clamp connectors GN 279 is unmachined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

The standard clamping screws are socket cap screws DIN912. They can be used in place of adjustable clamping levers GN911 (see table of dimensions).

Two swivel clamp connectors GN279 can be combined to GN289 swivel clamp connector joints.

Swivel clamp connectors GN279 can be assembled with swivel clamp connectors GN272, GN274 or GN276 to create swivel clamp connector joints.

Specification

Aluminium AL, plastic coated, black, RAL 9005, textured finish SW. Blank BL, matt shot-blasted

Clamping bores - Unmachined

Socket cap screws DIN912 - Steel ST, zinc plated / Stainless Steel NI, AISI 304

Hexagon nuts DIN985 Steel ST, zinc plated / Stainless Steel NI, AISI 304

Adjustable clamping levers GN911 - Zinc die casting

Inserts / distance bushings - Stainless Steel NI, AISI 303
