Standard Machine Elements > Tube Clamp Connectors, Clamp mountings & Connecting Elements > Tube Clamp Connectors
< Previous Product Next Product >

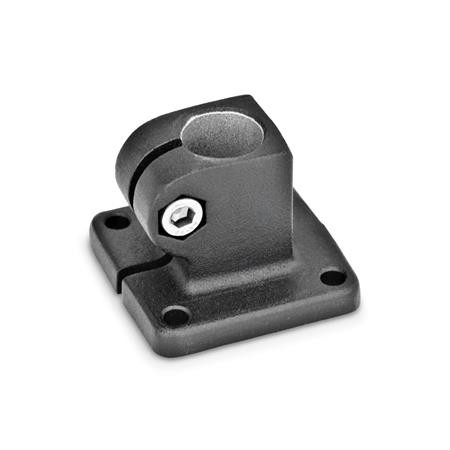

GN162 Base Plate Connector Clamp, Aluminium, 4 Mounting Holes



Identification 2 - with clamping screw DIN912, stainless steel

Select Values to Buy:

Tech Spec:



GN162 Base Plate Connector Clamp, Aluminium, with 4 Mounting Holes

The clamping bores of the base plate clamps GN162 are machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

The standard clamping bolts are socket cap screws DIN912. They can be used in place of adjustable clamping levers GN911 (see table of dimensions)

Specification

Aluminium, plastic coated, black, RAL 9005, textured finish SW, blank BL matt shot-blasted

Clamping bores machined

Cap screws DIN912, steel zinc plated

Hexagon nuts DIN985, steel zinc plated

Adjustable, clamping lever GN911

Inserts / distance bushings, stainless steel AISI 303

RoHS compliant

Select / Deselect Visible Columns
PartCoded1Id. No.Finishd2d3kl1l2tx1x2y1y2Clamping kits for d3MaterialMass

GN162-B10-2-SWB102SW5.5M64034.525750385038GN911-M6-22AL0.097
GN162-B10-2-BLB102BL5.5M64034.525750385038GN911-M6-22AL0.097
GN162-B12-2-SWB122SW5.5M64034.525750385038GN911-M6-22AL0.093
GN162-B12-2-BLB122BL5.5M64034.525750385038GN911-M6-22AL0.095
GN162-B14-2-SWB142SW5.5M64034.525750385038GN911-M6-22AL0.089
GN162-B14-2-BLB142BL5.5M64034.525750385038GN911-M6-22AL0.089
GN162-B15-2-SWB152SW5.5M64034.525750385038GN911-M6-22AL0.087
GN162-B15-2-BLB152BL5.5M64034.525750385038GN911-M6-22AL0.087
GN162-B16-2-SWB162SW5.5M64034.525750385038GN911-M6-22AL0.085
GN162-B16-2-BLB162BL5.5M64034.525750385038GN911-M6-22AL0.085
GN162-B18-2-SWB182SW5.5M64034.525750385038GN911-M6-22AL0.08
GN162-B18-2-BLB182BL5.5M64034.525750385038GN911-M6-22AL0.08
