GN237.3 Heavy Duty Hinges, Stainless Steel A4, Horizontally Elongated, Enhanced Strength

Choose your Part

Please select desired options to reveal part number, price and availability

Options

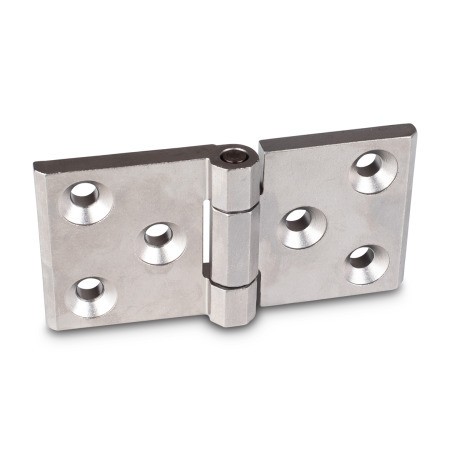

Type A - with bores for countersunk screws

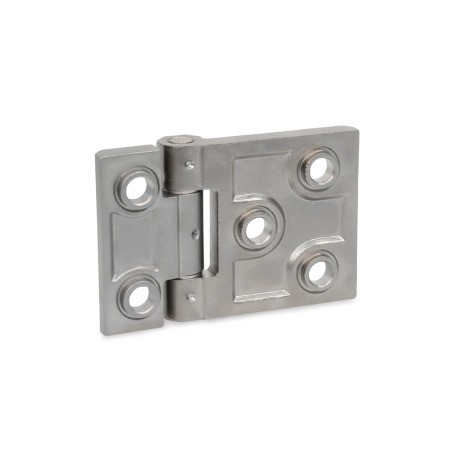

Type B - with bores for countersunk screws and centering attachments

Product Description

GN237.3 Heavy Duty Hinges, Stainless Steel, Horizontally Elongated A4, Enhanced Strength

Horizontally elongated, stainless steel, heavy duty hinges GN 237.3 are designed for use under tough conditions. Attachment points with a wider spacing and more installation holes allow a more effective introduction of force into the mounting surface. The hinge pins are integral and allow the hinges to be used in environments with strong vibrations and shocks.

The heavy-duty hinges can also be used in particularly aggressive environments thanks to the materials used. Wear is minimized by the effective friction pairing of the hinge components and lubrication.

The type B hinge has centering attachments that prevent lateral slippage under high loads and protect the mounting screws from impermissible transverse force.

Specification

• Hinge leaves - Stainless Steel AISI 316 A4
• Matte shot blasted finish GS
• Hinge pin - stainless steel AISI 318LN, nickle plated, tempered, lubricated with special grease, FDA compliant, class H1
• Shim washers - stainless steel AISI 316Ti, lubricated with special grease, FDA compliant, class H1

Accessories

Spacer plates GN2370
Plates GN2372
Rubber limit stops GN2374
