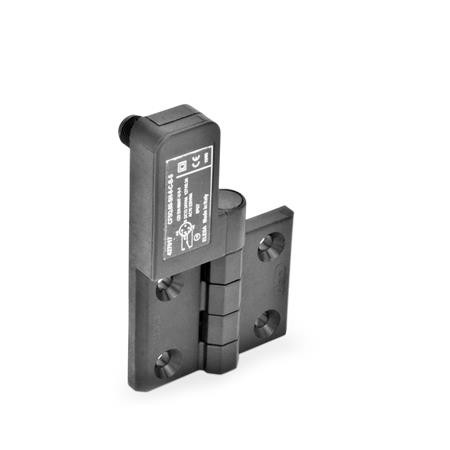

Id SL - Bores for contersunk screw, switch left

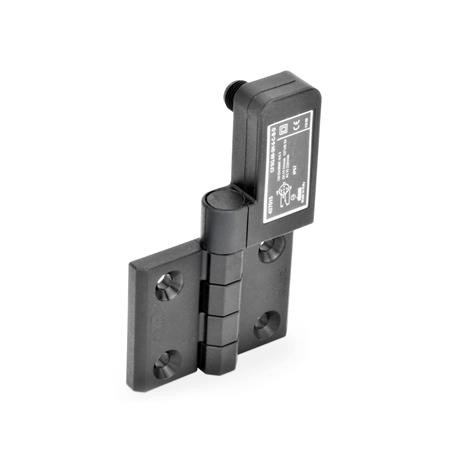

Id SR - Bores for contersunk screw, switch right

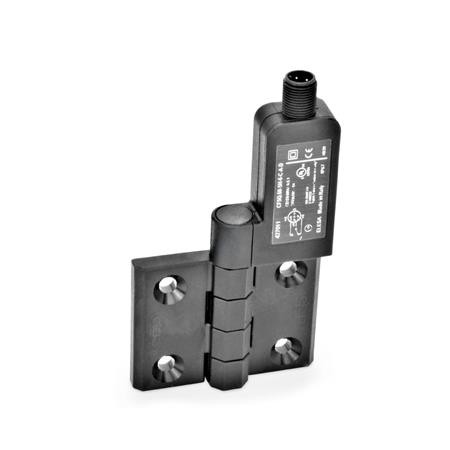

Type AS - Connector plug at the top
Type CS - Connector plug at the back
GN239.4 Plastic Hinges - Safety Switch, Electrical Switching Function & Connector Plug
Hinges GN 239.4 with an integrated two-way switch are suitable for detecting the status of doors, covers and guards on machines and equipment. Opening the door will activate the switching contact, allowing changes in the door status to be detected electrically depending on the wiring of the contacts (NC or NO).
The hinges with their integrated two-way switch are a compact, tamper-proof and easy to install unit, featuring an ultrasound-welded enclosure.
Operating instructions containing other important technical information are included with every hinge.
Plastic - glass fibre reinforced, black, matt, temperature resistant up to 80 °C
Pin - Stainless Steel, AISI 303
