GN321 Disc Handwheel, Aluminium, with Recessed Grips

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

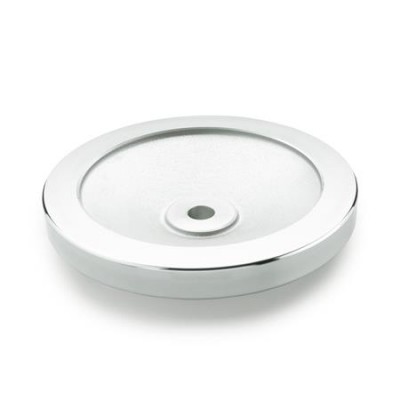

Bore code B - without keyway + Bore-diameter

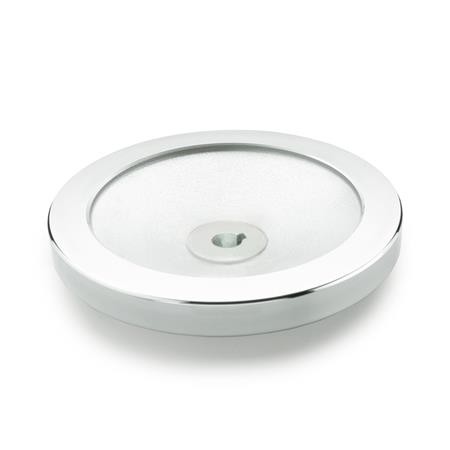

Bore code K - with keyway + Bore-diameter

Type A - without handle

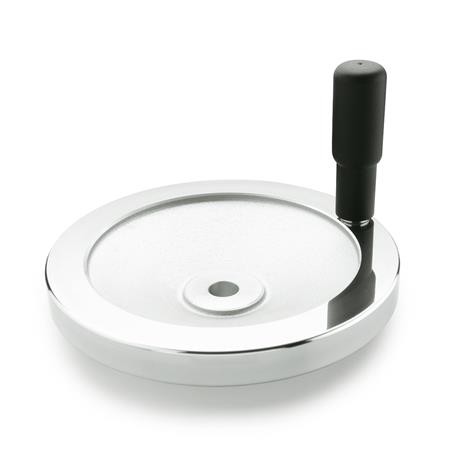

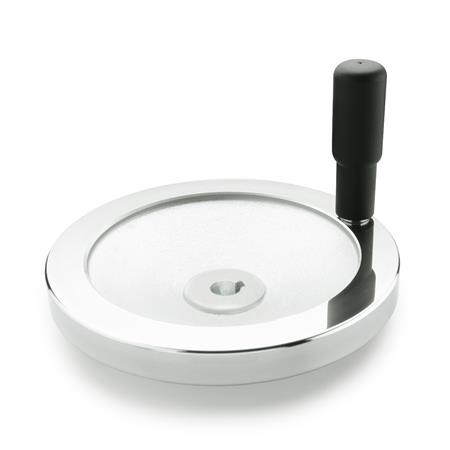

Type R - with revolving handle GN798

CAD Viewer Technical Data

Prodct description

GN321 Disc Handwheel, Aluminium, with Recessed Grips

These handwheels have a modern, attractive design. They can be supplied with or without revolving handles and have recesses at the back of the handwheel for a safe, secure grip. The highly polished rim and shot blasted body does not require painting or other treatments, for most applications.

Specification

Aluminium.

Hub - machined

Rim - turned and high-polished

Body - unmachined, matt shot-blasted

Rim concentric and square to bore
