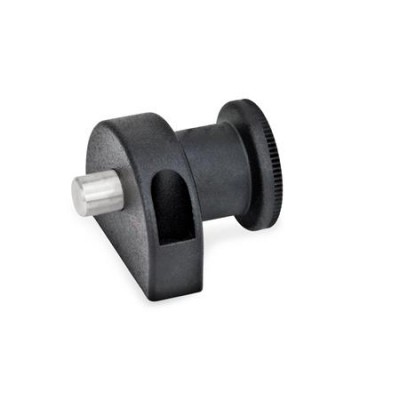

GN412 Indexing Plunger, with Screw-On Flange

images/615/GN412_Indexing_Plunger_with_Screw-On_Flange_Zinc_Die_Cast_Optional_Rest_H.jpg

Type  - without rest position

Type C  - with rest position



Identification 1 - Mounting from the front

Identification 2 - Mounting from the back

Select Values to Buy:

Tech Spec:



GN412 Indexing Plunger, with screw-on Flange

The outstanding feature of the indexing plungers GN412 is their compact design. They are mounted either from the front with cylinder head screws or from the back through threads. In Type C, the knob can be turned by 30° after retracting the indexing pin, holding it in the "retracted" position by means of the indexing lock.

The dimensions and connection measurements match the combination with GN412.1 mounting blocks in connection with positioning bushings GN412.2 or GN412.3.

Specification

Guide - Zinc die casting, zinc plated, blue passivated

Plunger - Stainless Steel AISI 303

Spring - Stainless Steel AISI 301

Knob - Plastic (Polyamide PA), black, matt finish, not removable

RoHS compliant

Select / Deselect Visible Columns
PartCoded1bTypeId. No.d2d3d4hkl1l2l3l4sA/FtSpring load
N initial
Spring load
N end
MaterialMass

GN412-5-35-B-1535B14.3M4252625326614121210515ZD0.063
GN412-5-35-C-1535C14.3M4252625326614121210515ZD0.063
GN412-5-35-B-2535B24.3M4252625326614121210515ZD0.071
GN412-5-35-C-2535C24.3M4252625326614121210515ZD0.07
GN412-6-35-B-1635B14.3M4252625326614121210515ZD0.064
GN412-6-35-C-1635C14.3M4252625326614121210515ZD0.064
GN412-6-35-B-2635B24.3M4252625326614121210515ZD0.071
GN412-6-35-C-2635C24.3M4252625326614121210515ZD0.071
GN412-8-47-B-1847B15.3M533343539101018141712935ZD0.14
GN412-8-47-C-1847C15.3M533343539101018141712935ZD0.13
GN412-8-47-B-2847B25.3M533343539101018141712935ZD0.152
GN412-8-47-C-2847C25.3M533343539101018141712935ZD0.152
GN412-10-47-B-11047B15.3M533343539101018141712935ZD0.143
GN412-10-47-C-11047C15.3M533343539101018141712935ZD0.143
GN412-10-47-B-21047B25.3M533343539101018141712935ZD0.154
GN412-10-47-C-21047C25.3M533343539101018141712935ZD0.155
#40444.13~40447.94#
