GN413 Indexing Plunger, Steel, Optional Rest Position



Type A - without rest position, without lock nut

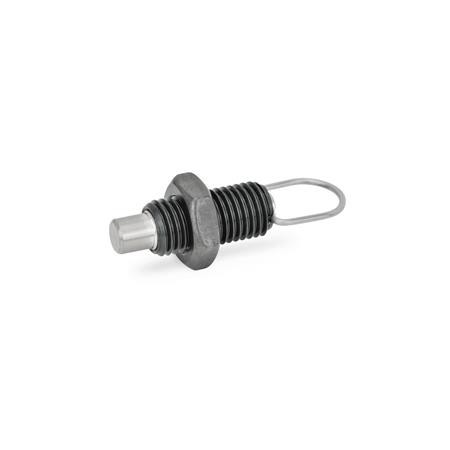

Type AK - without rest position, with lock nut

Type C - with rest position, without lock nut

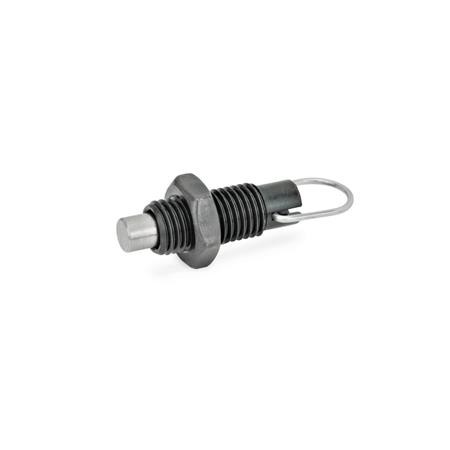

Type CK - with rest position, with lock nut

Select Values to Buy:

Tech Spec:



GN413 Indexing Plunger, Steel, Optional Rest Position

Owing to its shape, the lifting ring of these indexing plungers can be used both as a screw-in assist during assembly or as indexing lock (Type C / Type CK).

Indexing plungers with rest position are used when the indexing pin is temporarily not allowed to protrude. After the pin is pulled in, turn the pull ring by 90. The ring is held in position by an indexing notch.

Specification

Guide (Threaded socket) - Steel ST, blackened

Plunger - Stainless Steel AISI 303, chemically nickel plated

Spring - Stainless Steel AISI 301

Lifting ring - Stainless Steel AISI 301

RoHS compliant

Select / Deselect Visible Columns
PartCodeMass

GN413-5-M10-A-ST0.011
GN413-5-M10-AK-ST0.016
GN413-5-M10-C-ST0.012
GN413-5-M10-CK-ST0.02
GN413-5-M10X1-A-ST0.012
GN413-5-M10X1-AK-ST0.02
GN413-5-M10X1-C-ST0.013
GN413-5-M10X1-CK-ST0.018
GN413-6-M12-A-ST0.018
GN413-6-M12-AK-ST0.018
GN413-6-M12-C-ST0.02
GN413-6-M12-CK-ST0.02
GN413-6-M12X1,5-A-ST0.018
GN413-6-M12X1,5-AK-ST0.03
GN413-6-M12X1,5-C-ST0.02
GN413-6-M12X1,5-CK-ST0.06
GN413-8-M16-A-ST0.045
GN413-8-M16-AK-ST0.045
GN413-8-M16-C-ST0.047
GN413-8-M16-CK-ST0.051
GN413-8-M16X1,5-A-ST0.045
GN413-8-M16X1,5-AK-ST0.07
GN413-8-M16X1,5-C-ST0.051
GN413-8-M16X1,5-CK-ST0.058
GN413-10-M16-A-ST0.047
GN413-10-M16-AK-ST0.047
GN413-10-M16-C-ST0.053
GN413-10-M16-CK-ST0.053
GN413-10-M16X1,5-A-ST0.047
GN413-10-M16X1,5-AK-ST0.013
GN413-10-M16X1,5-C-ST0.053
GN413-10-M16X1,5-CK-ST0.1
#29491.25~29491.69#

Also available in stainless steel.
