GN509.11 Ball Transfer Unit, with External Thread, with Friction Bearing, Steel / Stainless Steel
CloseNextPreviousGN509.11 Ball Transfer Units, External Thread, Friction Bearing
Material ST Steel

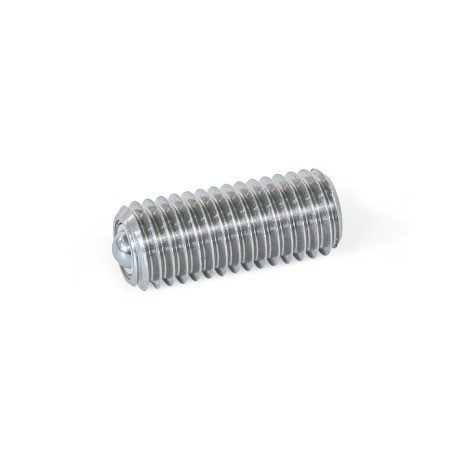

CloseNextPreviousGN509.11 Ball Transfer Units, External Thread, Friction Bearing
Material NI Stainless Steel
Choose your Part
Please select desired options to reveal part number, price and availability
Product Description
GN509.11 Ball Transfer Unit, with External Thread, with Friction Bearing, Steel / Stainless Steel
Ball transfer units GN 509.11 are used for building mechanisms and devices. The friction bearing of the ball ensures low-friction displacement and rotation of workpieces in any direction.
The position of the ball transfer units can be adjusted in the axial direction using the external thread.
Specification
- Housing
- Steel, blackened ST
- Stainless steel AISI 303 NI
- Ball
- Steel AISI 52100, hardened for ST
- Stainless steel AISI 420C, hardened, for NI
- Friction bearing
- Plastic, operating temperature -50 ºC to +90 ºC
CAD Viewer
Technical Data
