GN617.1: Indexing Plunger
Type: A - without Lock Nut

Close Next Previous

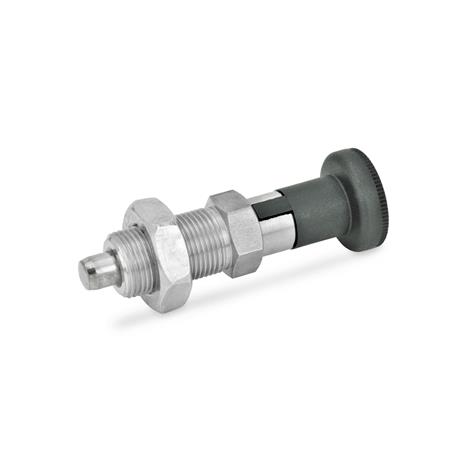

GN617.1: Indexing Plunger
Type: AK - with Lock Nut

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - without lock nut

Type AK - with lock nut

Product Description

GN617.1 Indexing Plunger, with Rest Position, Stainless Steel, Plastic Knob

These indexing plungers, GN 617.1, with rest position are used for applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° after being retracted.

A notch keeps the plunger in this position.

This is a cost effective option, which is suitable for clean rooms, such as found in the food, medical and pharmaceutical industries.

Specification

Stainless Steel NI AISI 303, plunger pin chemically nickel plated.
Knob - Plastic (Polyamide PA), black, matt finish, not removable.

Accessory

Thin stainless steel hex nuts GN909.5

Positioning bushes, stainless steel, GN412.4
