GN617.2 Indexing Plunger, Optional Rest, Threaded Plastic Body, Stainless Steel Plunger
CloseNextPreviousGN617.2 Indexing Plunger
Type: B Without Rest Position, Without Lock Nut
CloseNextPreviousGN617.2 Indexing Plunger

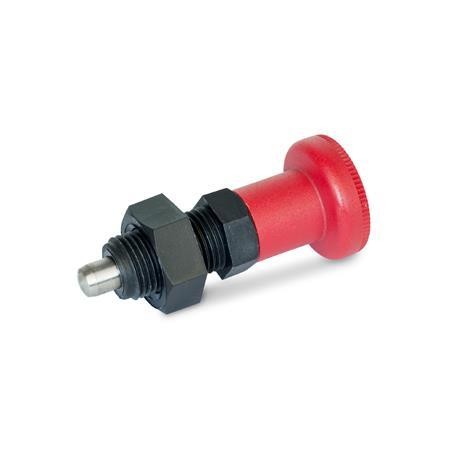

Type: BK Without Rest Position, With Lock Nut
CloseNextPreviousGN617.2 Indexing Plunger

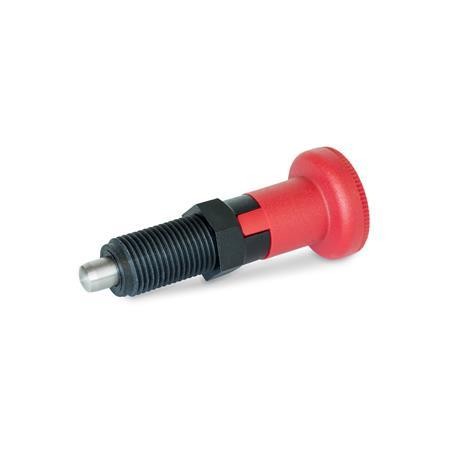

Type: C With Rest Position, Without Lock Nut
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type B - without rest position, without lock nut
Type BK - without rest position, with lock nut
Type C - with rest position, without lock nut

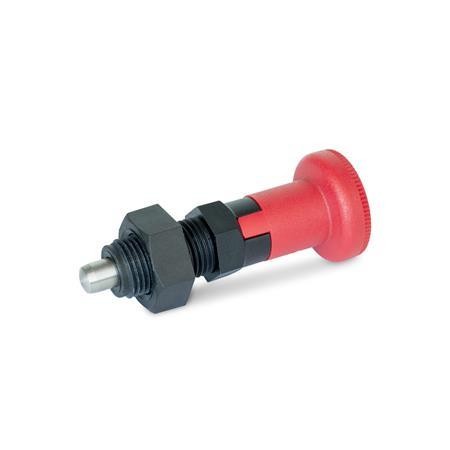

Type CK - with rest position, with lock nut
Product Description
GN617.2 Indexing Plunger, Optional Rest, Threaded Plastic Body, Stainless Steel Plunger
Indexing plungers GN 617.2 with plastic body are a reasonably priced indexing plunger variant. The dimensions correspond to those of the GN617 or GN617.1 indexing plungers.
Indexing plungers Type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specification
- Threaded body - Plastic (Polyamide PA-HP), glass fibre reinforced, temperature resistant up to 130 °C, black, matte
- Plunger - Stainless steel NI AISI 303
- Pressure spring - Stainless steel AISI 302
- Knob - Plastic (Polyamide PA), red. RA 3000, matte, not removable. RT
- Lock nut - Plastic (Polyamide PA-HP), black, matte
