GN820.1 Type N 3D CAD Model
GN820.1 Type NC 3D CAD Model
GN820.1 Type P 3D CAD Model


GN820.1 Horizontal Clamp, with Vertical Base



GN820.1: Horizontal Clamp
Type: N - U-Bar Version


GN820.1: Horizontal Clamp
Type: P - Solid Clamping Bar with Clasp


GN820.1: Horizontal Clamp
Type: NC - U-Bar Version and GN708.1

CAD Viewer Technical Data

Series Selector


Type N - U-bar version, with two flanged washers

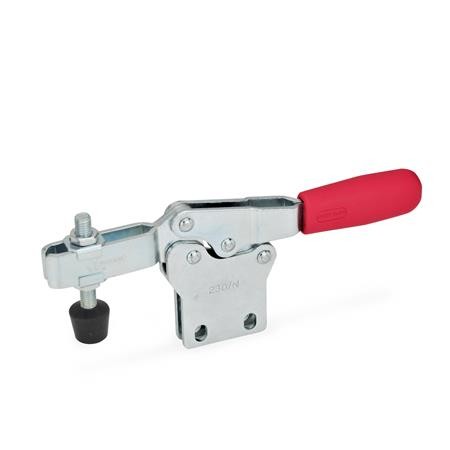

Type NC - U-bar version, with two flanged washers and GN708.1 Spindle Assembly

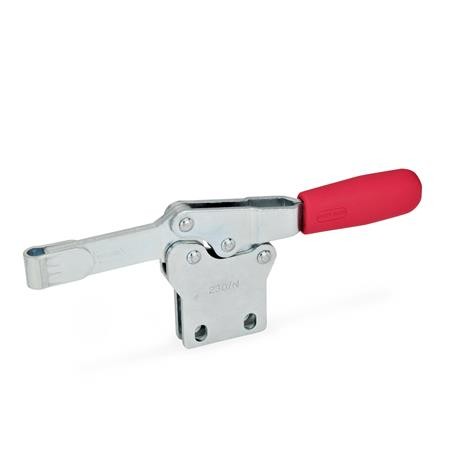

Type P - solid clamping arm

CAD Viewer Technical Data

Product Description

GN 820.1 Horizontal Clamp with Vertical Base

These GN 820.1 horizontal acting toggle clamps work according to the toggle principle: the lever and clamping bar move in the opposite direction.

They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. A special feature of this clamp is its low profile in clamping position. They are designed in such a way to avoid the operator's fingers being caught between the retracting clamping arm and the operating handle (safety distance).

Horizontal acting toggle clamps in the U bar version with two flanged washers (Type N) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type NC (GN708.1).

Type P version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with GN809 Clamp Mounts to hold the work piece in place.


Steel, case hardened, C 10, zinc plated, blue passivated.

Bearing pins - tempered.

Bearing rivets (from size 355 upwards) - case hardened.

All moving parts lubricated with special grease.

Hand grip - High quality, oil resistant, red plastic.

Also available as GN820.1 in stainless steel.


GN708.1 clamping bolt, with rubber tip.
