GN820.6 Toggle Clamp, Steel / Stainless Steel, Operating Lever with T Handle

Choose your Part

Please select desired options to reveal part number, price and availability

Options

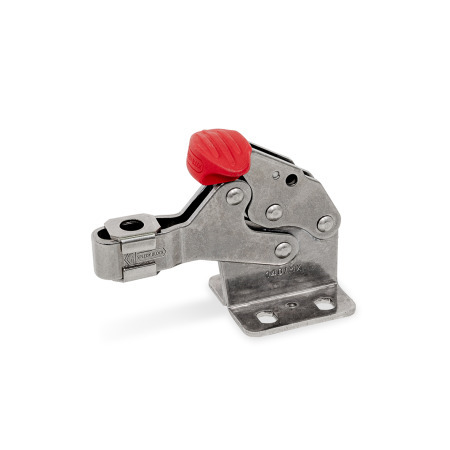

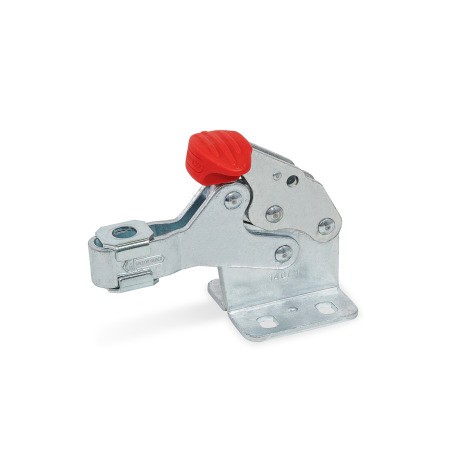

Type M - Without lock mechanism, with two flanged washers

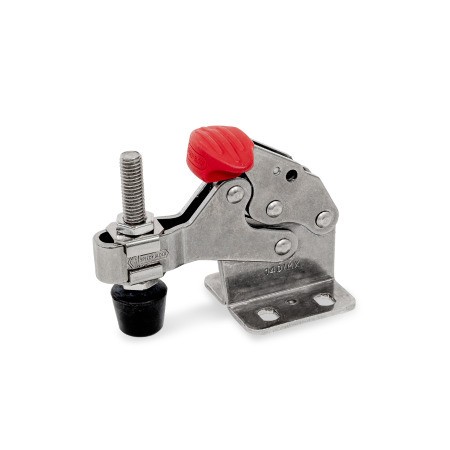

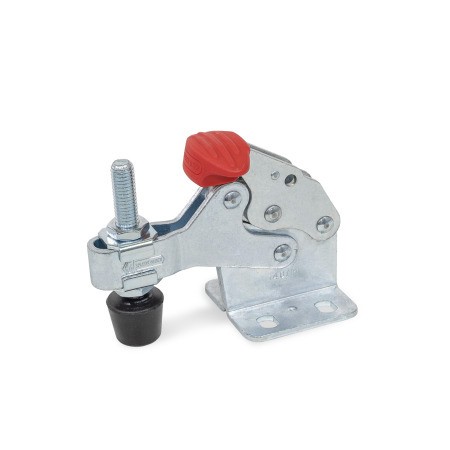

Type MC - Without lock mechanism, with two flanged washers and clamping screw GN708.1

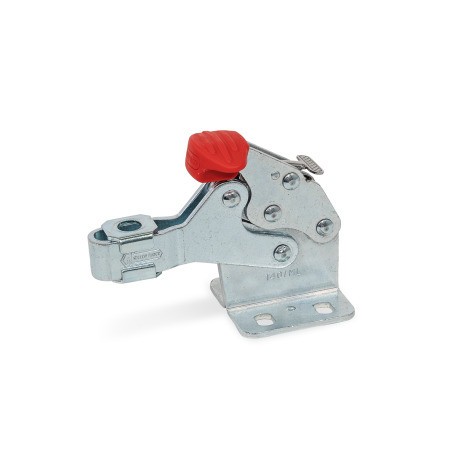

Type ML - With lock mechanism, with two flanged washers

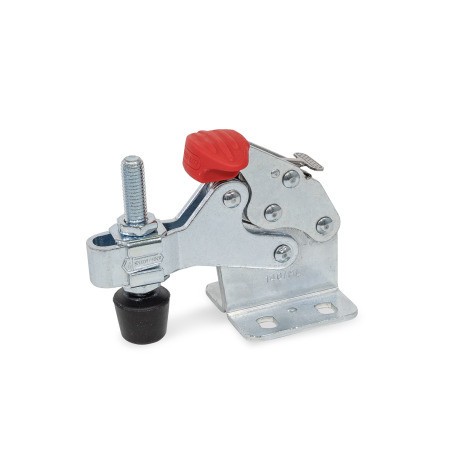

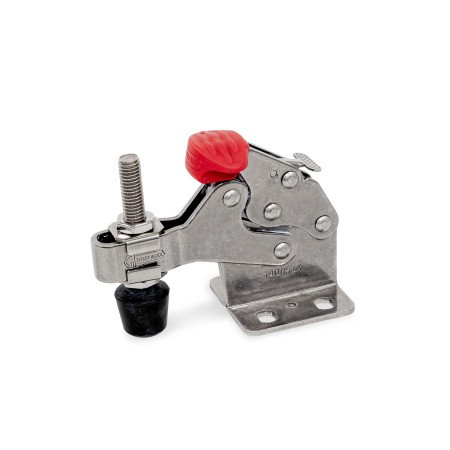

Type MLC - With lock mechanism, with two flanged washers and clamping screw GN708.1

Product Description

GN820.6 Toggle Clamp, Steel / Stainless Steel, Operating Lever with T Handle

Toggle clamps GN 820.6 feature a very compact design.

Types ML / MLC are securely locked while in the clamped position to prevent loosening by accident or due to vibrations. The lock can be released by one hand operation.

Specification

• Tensioning mechanism
  • Steel ST
    • Sheet metal parts - case hardened steel C10, zinc plated, blue passivated
    • Bearing pins - tempered
    • Bearing rivits - case hardened
    • Moving parts lubricated with special grease
  • Stainless Steel NI
    • Sheet metal parts AISI 304
    • Bearing pins, bearing rivits AISI 304
    • Moving parts lubricated with special grease
• Handle
  • Plastic, red, oil resistant
• Flanged washers GN898
• Steel, zinc plated, blue passivated for ST
• Stainless steel, AISI 304 for NI
• Clamping screws GN708.1 for type MC / MLC
  • Steel, zinc plated, blue passivated for ST
  • Stainless steel, AISI 304 for NI
  • Rubber tip
    • 85 Shore A
    • Type A (flat pressure area)

Accessories

Clamping arm extenders GN801.1 (rigid)
Clamping arm extenders GN801.2 (with joint)
