GN822.1 Mini Indexing Plunger, open Indexing Mechanism

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type B - without rest position

Type C - with rest position

Product Description

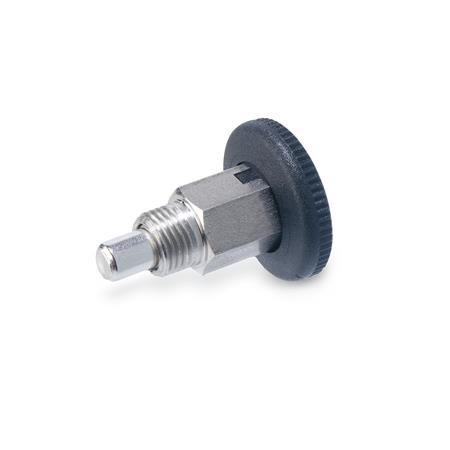

GN822.1 Mini Indexing Plunger, open Indexing Mechanism

Mini indexing plungers GN 822.1 are known for their small dimensions. They have been designed for installation in thin walled sheet metal constructions.

Type C with rest position is used in such applications where the plunger must not protrude continually. In that case the knob is retracted and afterwards turned by 90°. A notch keeps the knob in this position.

Distance bushings GN609 (for indexing plungers)

Specification

Steel ST zinc plated, blue passivated

Stainless Steel NI AISI 303

Plunger - Stainless Steel NI AISI 303

Spring - Stainless Steel NI AISI 301

Knob Plastic - Technopolymer (Polyamide PA), black, matt finish, not removable
