GN823 Indexing Plungers, with Operating Lever, Flange for Surface Mounting, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

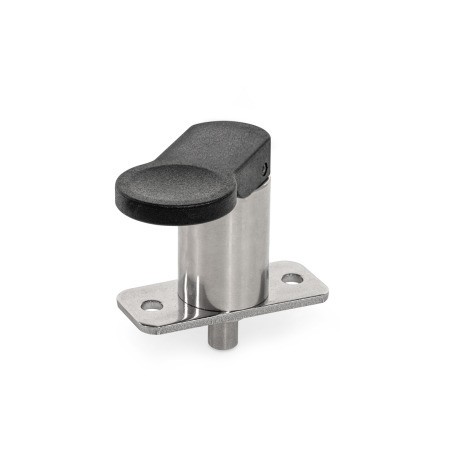

Type B - Without rest position

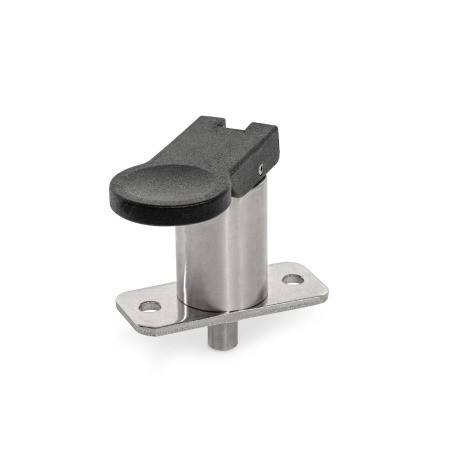

Type C - With rest position

Code B - Rotating

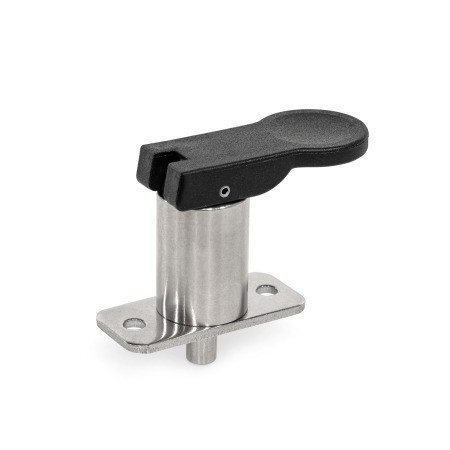

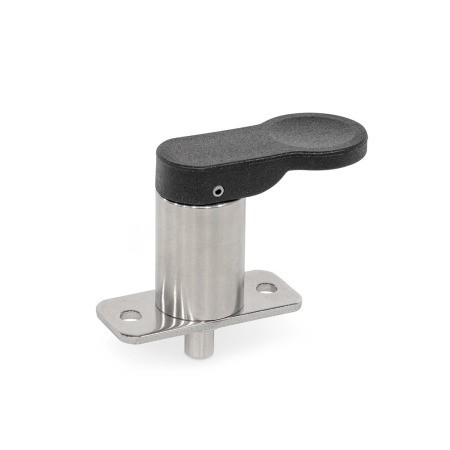

Code BP - Anti-twist protection parallel

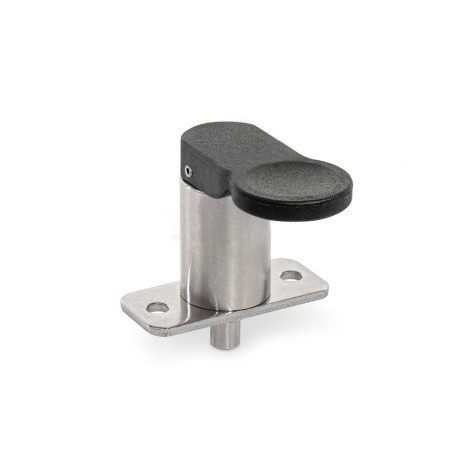

Code BR - Anti-twist protection perpendicular

GN823 Indexing Plungers, with Operating Lever, Flange for Surface Mounting, Stainless Steel

Indexing plungers GN 823 with operating lever can be used to lock carriages in guides, for example. The plunger pin is retracted by simply pressing the operating lever.

Type C also allows actuation by pulling and locking the plunger pin in the retracted position (rest position).

Specification

• Guide -Stainless steel AISI 304 NI
• Plunger pin - stainless steel AISI 303
• Lever - plastic, polyphtalamide (PPA), glass fibre reinforced, black SW
• Pressure spring - stainless steel AISI 302

Accessories

Positioning Bushings GN412.2 (with Collar)

Positioning Bushings GN412.4 (with Collar)

Positioning Bushings GN412.3 (with Ramping Cone)

Positioning Bushings GN412.5 (with Ramping Cone)
