GN115.1 Mini Latch, Zinc Die Cast, Black Locating Ring

CloseNextPrevious



CloseNextPrevious

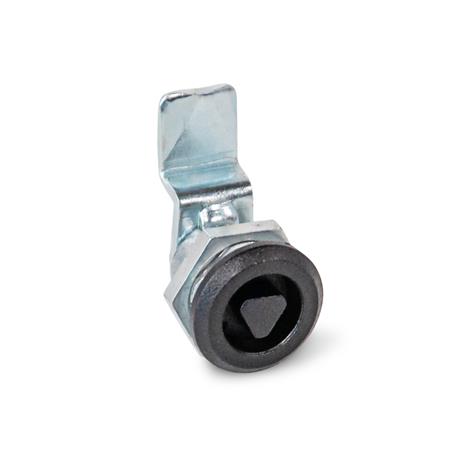

GN115.1 Mini Latch, Black Locating Ring
Type:DK - Operation with Triangular Spindl



CloseNextPrevious

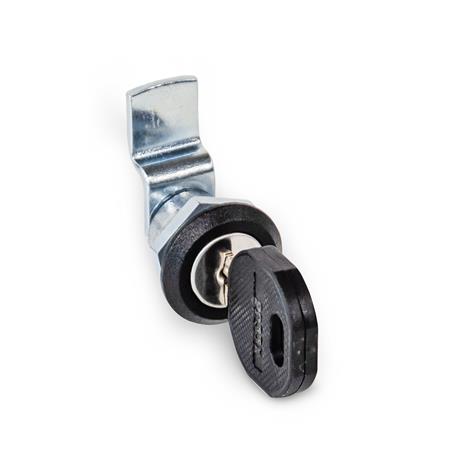

GN115.1 Mini Latch, Black Locating Ring
Type: SC with Key, Lockable, Keyed Alike



CloseNextPrevious

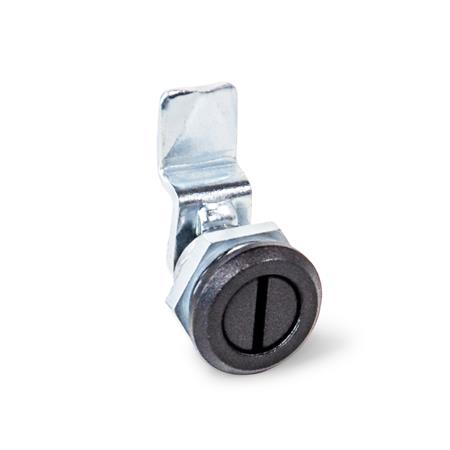

GN115.1 Mini Latch, Black Locating Ring
Type: SCH Operation with Slot



CloseNextPrevious

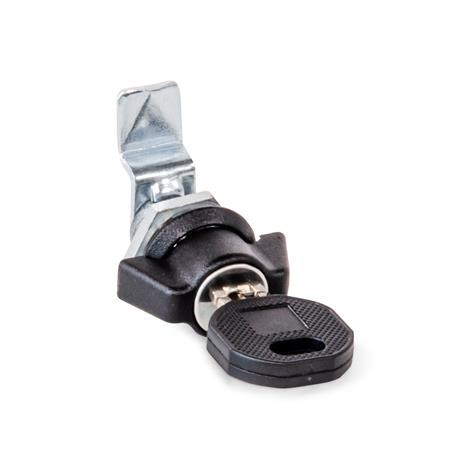

GN115.1 Mini Latch, Black - Type: SCK -
Operation with Wing Knob, Lockable



CloseNextPrevious

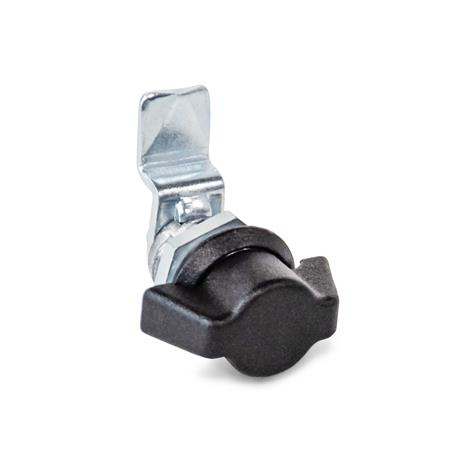

GN115.1 Mini Latch, Black Locating Ring
Type: SK Operation with Wing Knob



CloseNextPrevious

GN115.1 Mini Latch, Black Locating Ring
Type: VK - Operation with Square Spindle



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type DK - Operation with triangular spindle DK6.5

Type SC - Lock with one combination

Type SCH - Operation with slot

Type SCK - Operation with wing knob, lockable

Type SK - Operation with wing knob

Type VK - Operation with square spindle

CAD Viewer Technical Data

Product Description

GN115.1 Mini Latch, Zinc Die Cast, Black Locating Ring

This mini latch, GN 115.1, has  smaller dimensions than GN115. It lends itself ideally for small doors and flaps, where there is limited space or an unobtrusive appearance is required

They lock by a turning operation limited to 90° which moves the locking behind the door frame. The bevels of the locking ease the closing of the door. Latches with different cranks cover a latch distance A of 7.5, 13.5 and 19.5mm

The lockable mini latch (SC and SCK) is supplied with 2 keys. The key can be withdrawn from the lock in either end position.

The lock is standard, and has the same barrel so that every lock can be opened using the same key. Locks with different combinations are available on request.

The lockings are included loose (except for type SC).

Specification

Lock housing - Zinc die casting

Locating ring - Plastic coated, black, RAL 9005, textured finish SW

Wing knob (type SK and SCK) - Zinc die casting, plastic coated, black, RAL 9005, textured finish

Key - Nickel silver with plastic hand piece

All other parts - Steel, zinc plated, blue passivated

Protection class IP 65 Type: DK, VK, SCH, SK

Accessories

Socket keys GN119.2

Protective caps GN120

On Request

Lock with different combinations
