GN115 Latch, Stainless Steel, with Operating Elements, Lockable

Choose your Part

Please select desired options to reveal part number, price and availability

Options

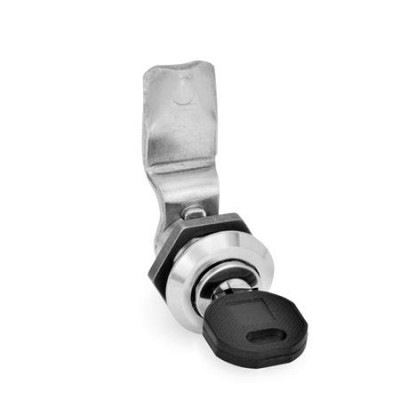

Type SC - Operation with key (same lock)

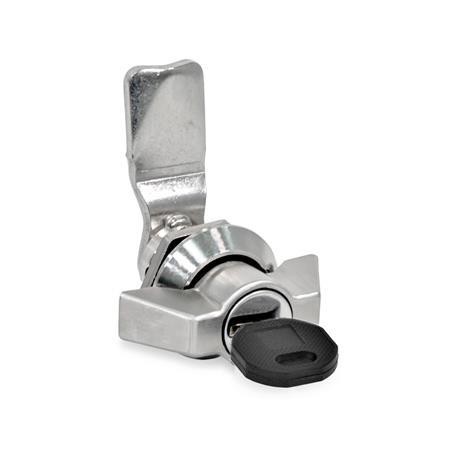

Type SCKN - Operation with wing knob (same lock)

Type SCTN - Operation with T handle (same lock)

Product Description

GN115 Latch, Stainless Steel, with Operating Elements, Lockable

These lockable stainless steel latches GN 115 lock by a turning operation, limited to 90°, which moves the locking behind the door frame. The bevels of the locking ease the closing of the door.

Latches with different cranks cover a latch distance A from 6 to 50 mm.

Includes a separately enclosed latch as well as two keys, removable in both end positions. The lock is standard, so that every lock can be opened with the same key.

Specification

• Lock housing NI :
  • Type SC - Stainless steel AISI 303
  • Type SCKN, SCTN - Stainless steel AISI 316
• Latch - Stainless Steel AISI 304
• Key - Nickel silver with plastic hand piece
• Operating elements (Type SCKN, SCTN) - Stainless steel AISI 316
• Other parts:
  • Type SC - Stainless steel AISI 316
  • Type SCKN, SCTN - Stainless steel AISI 316
• Protection class IP 65

Accessory

Opening Handles GN120.1

On Request

Latch arm in A4

Lock with Different Combinations
