GN445.5 Levelling Foot, Threaded Stainless Steel Stud, Plastic Foot

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - Without nut, without rubber underlay

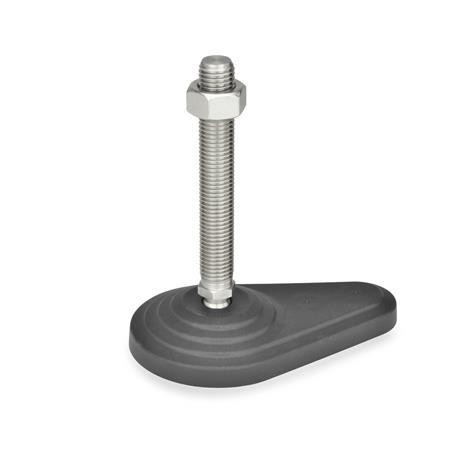

Type B - With nut, without rubber underlay

Type AG - Without nut, with rubber underlay

Type BG - With nut, with rubber underlay

Product Description

GN445.5 Levelling Foot, Threaded Stainless Steel Stud, Plastic Foot

Leveling feet GN 445.5 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.

The fixing holes are closed by a thin plastic layer, which may be easily punctured.

Leveling feet GN445.5 are supplied assembled, but are removable.

Specification

• Foot - Plastic Technopolymer (Polyamide PA), glass fibre reinforced, black, matte, temperature resistant up to 100°C
• Threaded stud - Stainless steel, AISI 303
• Hexagon nut ISO 4032 - Stainless steel, AISI 304
• Rubber underlay - NBR, 70 Shore A, black

The values given in the table regarding the static load capacity serve as a guide line only and if these are exceeded serious permanent deformation or breakage of the plastic foot could occur.The values were arrived at by a series of tests whereby a limited number of leveling feet were subjected for a limited time to a vertical static load to the feet. The listed load capacities are non-binding guide values; the manufacturer accepts no liability for their performance. In general, they do not constitute a warranty of condition. The user must determine from case to case whether a product is suitable for the intended use.
