GN276 Swivel Clamp Connector, Aluminium

CloseNextPrevious



CloseNextPrevious

GN276: Swivel Clamp Connector
Type: AV - Finish: BL



CloseNextPrevious

GN276: Swivel Clamp Connector
Type: AV - Finish: SW



CloseNextPrevious

GN276: Swivel Clamp Connector
Type: IV - Finish: BL



CloseNextPrevious

GN276: Swivel Clamp Connector
Type: MZ - Finish: SW



CloseNextPrevious

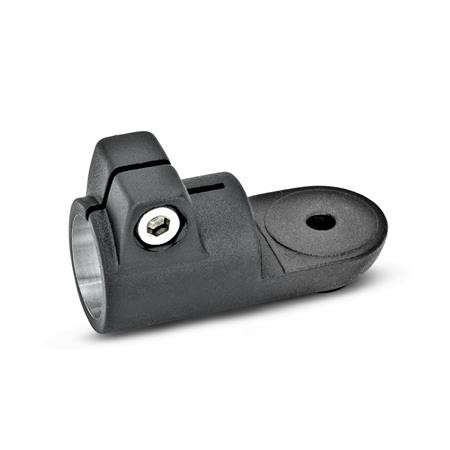

GN276: Swivel Clamp Connector
Type: OZ - Finish: SW



CloseNextPrevious

GN276: Swivel Clamp Connector
Type: OZ - Finish: BL



CloseNextPrevious

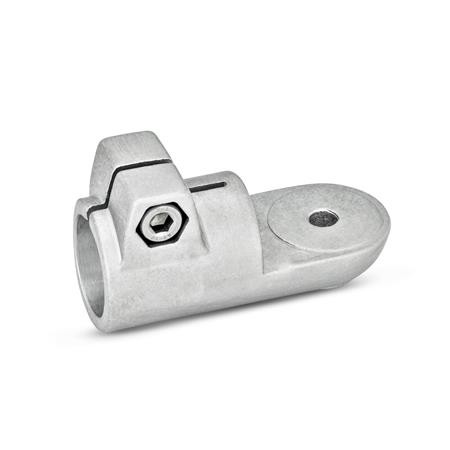

GN276: Swivel Clamp Connector
Type: MZ - Finish: BL



CloseNextPrevious

GN276: Swivel Clamp Connector
Type: IV - Finish: SW



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type OZ - without Centering Step

Type MZ - with Centering Step

Type AV - External Serration

Type IV - Internal Serration

Identification No. 2 - with one clamping screw DIN 912, stainless steel

CAD Viewer Technical Data

Product description

GN276 Swivel Clamp Connectors, Aluminium

The clamping bore of the swivel clamp connectors. GN 276, is mechanically machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

The hexagon nuts DIN985 are either zinc plated or in stainless steel to suit the screws.

The clamping nuts (Identification no. 1 - 2) of the connector clamps comprise a screw and a nut and, in the case of the hexagon screw and clamping levers, a spacer tube is added.

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN912. It can be replaced by a clamping kit GN911 (article code see table of dimensions).

Swivel clamp connnectors GN276 can be assembled with swivel clamp connectors GN272GN274 or GN278 to create swivel clamp connector joints.

Special executions: different surface finish or colours.

Specification

Aluminium - plastic coated black, RAL 9005, textured finish SW. Blank, Matt shot blasted BL

Clamping bore mechanically machined

Socket cap screws DIN 912 - Stainless Steel AISI 304

Hexagon nuts DIN 985 - Stainless Steel AISI 304

Accessory

Clamping kits GN911.
