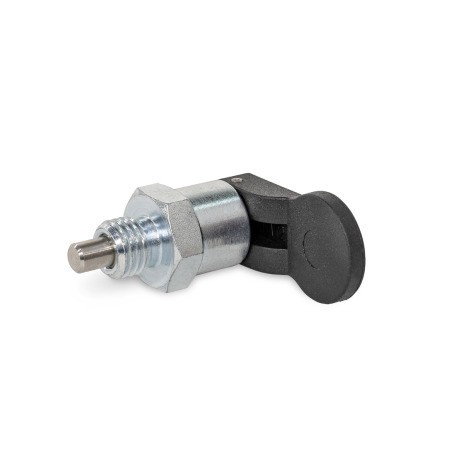

Type B - Without rest position

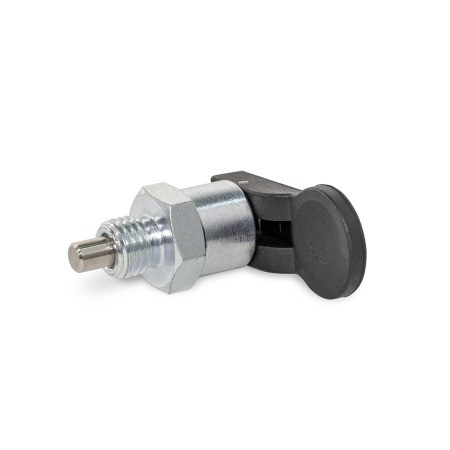

Type C - With rest position

Code R - Standard thread

Code F - Fine thread

GN823 Indexing Plungers, with Operating Lever, with External Thread, Steel / Stainless Steel

Indexing plungers GN 823 with operating lever can be used to lock carriages in guides, for example. The plunger pin is retracted by simply pressing the operating lever.

Type C also allows actuation by pulling and locking the plunger pin in the retracted position (rest position).

Specification

• Guide
• Steel, zinc plated, blue passivated ST
• Stainless steel AISI 303 NI
• Plunger pin - stainless steel AISI 303
• Lever - plastic, polyphtalamide (PPA), glass fibre reinforced, black SW
• Pressure spring - stainless steel AISI 302

Accessories

Positioning Bushings GN412.2 (with Collar)

Positioning Bushings GN412.4 (with Collar)

Positioning Bushings GN412.3 (with Ramping Cone)

Positioning Bushings GN412.5 (with Ramping Cone)

Distance Bushings GN609.5 (Stainless Steel)

Mounting Blocks GN412.1 (Zinc Die Casting)

Mounting Blocks GN612.1 (Steel / Stainless steel)

Thin Hex Nuts GN909

Thin Hex Nuts GN909.5
