Please select desired options to reveal part number, price and availability
Options
Type T - With fixing holes, without pulling latch, with latch bracket.
Type T3 - With fixing holes, with pulling latch, with latch bracket.

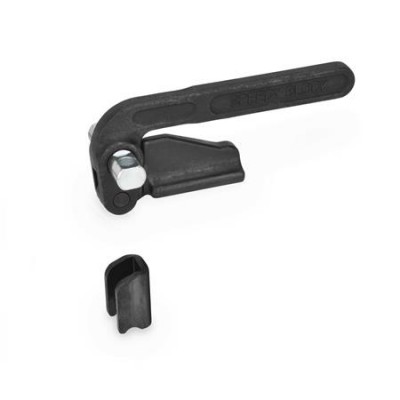

Type TS - For welding, without pulling latch, with latch bracket.
Type T3S - For welding, with pulling latch, with latch bracket.
Product Description
GN852.1 Latch Clamp, Heavy Duty Type, Steel
The U-bolt latch of the GN 852.1 latch clamp is adjustable within the adjusting range.
Once in the clamping position, the pulling latch is perpendicular to the clamping arm and to the fixing level of the latch clamp.
Next to the standard dimensions of the pulling latches shown above, more design variants are on offer under GN951.2.
Specification
Base / operating handle - Steel ST C22, forged, blackened.
Fixed Catch - Sheet Steel ST, blackened.
U-bolt latch / bearing pins - Steel ST 37, zinc plated, blue passivated.
All moving parts lubricated with special grease.
