Please select desired options to reveal part number, price and availability
Options

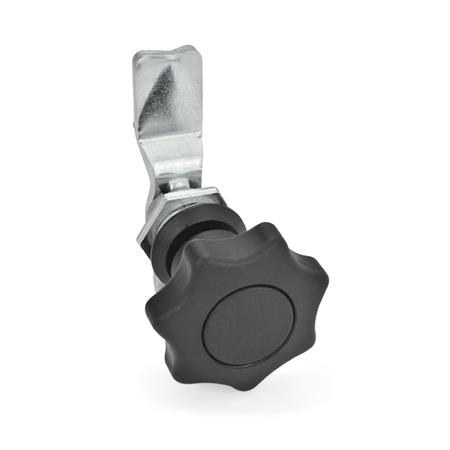

Type SG - Operation with star knob

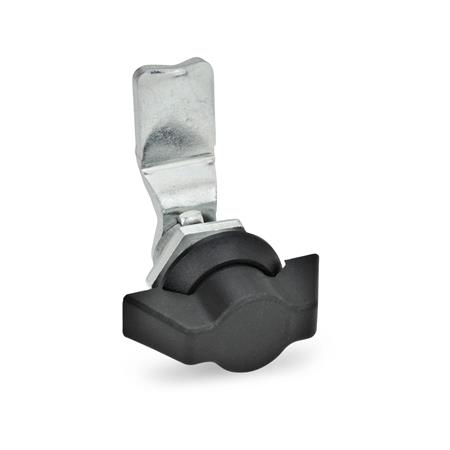

Type SK - Operation with wing knob

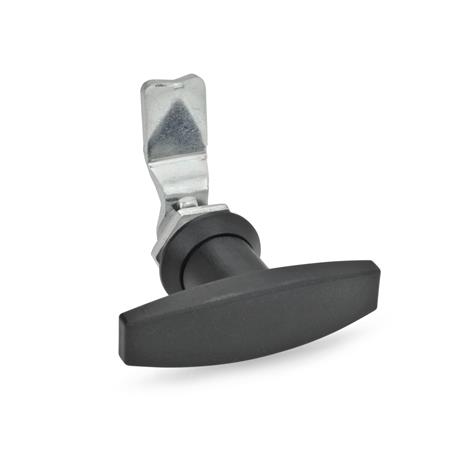

Type ST - Operation with T-Handle

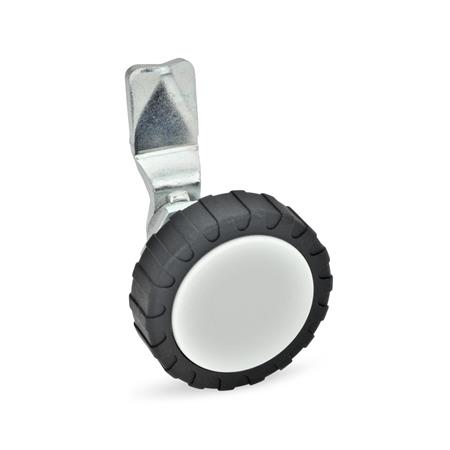

Type RG - Operation with knurled knob GN7336

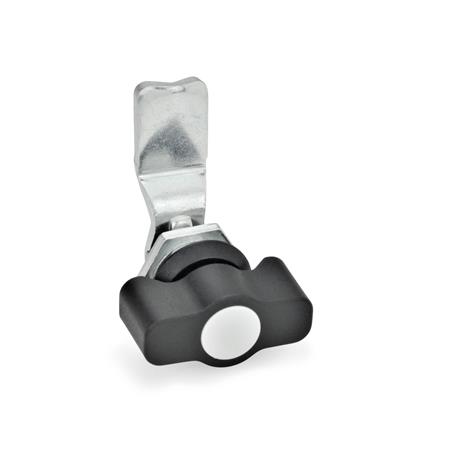

Type KG - Operation with wing knob

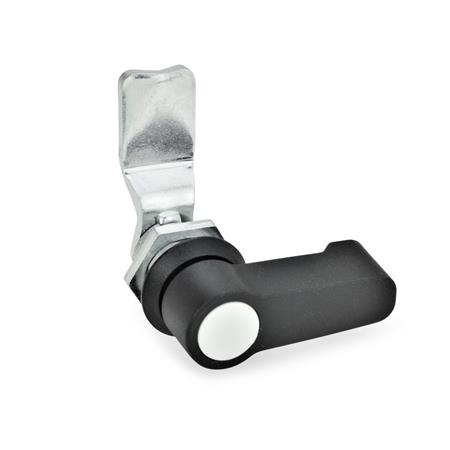

Type HG - Operation with lever

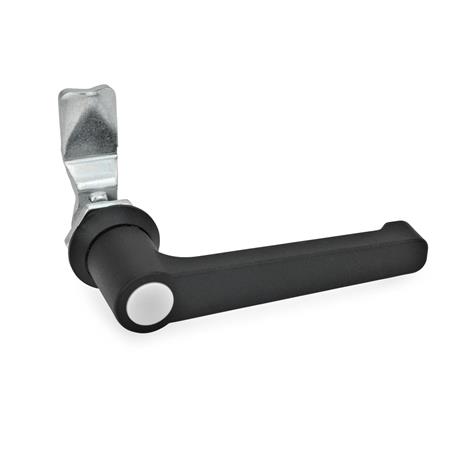

Type LG - Operation with lever handle
Product Description
GN115 Latch, Locating Ring Black Plastic Coated, Not Lockable
This latch, GN 115, is a reasonably priced option, offering a straight-forward locking action rather than a locking and clamping action. Latches GN115 lock by a turning operation limited to 90° which moves the locking behind the door frame. The bevels of the latch ease the closing of the door.
The choice of 22 differently shaped catch plates gives a range for latch distance A of 4 to 50 mm.
The lockings are included loose.
Specification
Lock housing - Zinc die casting
Locating ring - plastic coated black, RAL 9005, textured finish SW
All other parts - Steel, zinc plated, blue passivated
Operating handles
Type SG, SK, ST, RG, KG, HG - Plastic (Polyamide PA), black, matt
Type LG - Zinc die casting - plastic coated, black, RAL 9005, textured finish
Type RG, KG, HG, LG - Cover cap, light grey
