Strength Values of Plastic Cabinet U Handles
Plastic Specification

CAD Data

3D CAD Files
GN630.1 Type A 3D CAD Model
GN630.1 Type B 3D CAD Model

GN630.1 Plastic Cabinet U Handles

Close Next Previous

Close Next Previous

GN630.1: Cabinet U Handle
Colour of the Cover Cap: DBL - Blue

Close Next Previous

GN630.1: Cabinet U Handle
Colour of the Cover Cap: DGB - Yellow

Close Next Previous

GN630.1: Cabinet U Handle
Colour of the Cover Cap: DGR - Grey

Close Next Previous

GN630.1: Cabinet U Handle
Colour of the Cover Cap: DOR - Orange

Close Next Previous

GN630.1: Cabinet U Handle
Colour of the Cover Cap: DRT - Red

Close Next Previous

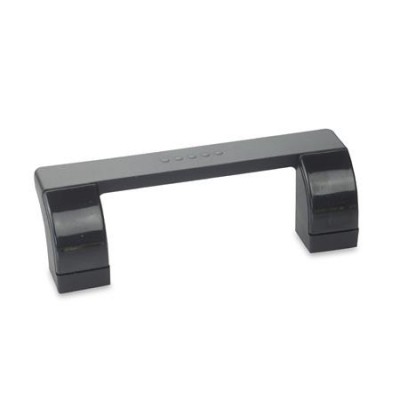

GN630.1: Cabinet U Handle
Colour of the Cover Cap: DSG - Black-Grey

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - Fixing with hexagon screw

Type B - Fixing with countersunk screw

Product Description

GN630.1 Plastic Cabinet U Handles

The design of GN 630.1 cabinet U handles conforms to the requirements of the Ergostyle® product family. This results in a high-quality, aesthetically pleasing and comfortable product. These U handles have many uses; a typical application is on double swing doors on machine shrouds or fixtures.

The cover is supplied loose.

Specification

Plastic, Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 110 °C, black-grey, matt, similar to RAL 7021
Cover Colour (shiny)
- Black-grey RAL 7021 DSG.
- Orange RAL 2004 DOR.
- Grey RAL 7035 DGR.
- Yellow RAL 1021 DGB.
- Blue RAL 5024 DBL.
- Red RAL 3000 DRT.
- Green RAL 2024 DGN.
